Texas Instruments TUSB546A-DCIRNQR USB Type-C Alternate Mode Redriver Switch

The TUSB546A-DCIRNQR from Texas Instruments is a high-performance USB Type-C Alternate Mode redriver switch designed to enhance signal integrity for cables and connectors between a USB host and a display or storage device. This component is particularly suited for applications that require high-speed data transfer and video streaming, such as laptops, docking stations, monitors, and external storage devices.

Key Features

• USB Type-C and USB Power Delivery Support: The TUSB546A-DCIRNQR is fully compatible with the USB Type-C specification and supports USB Power Delivery, enabling higher power charging and increased flexibility for various applications.
• High-Speed Data Transfer: This redriver switch supports high-speed data rates up to 10 Gbps for USB 3.1 Gen 2, ensuring fast and efficient data transfer between devices.
• Alternate Mode Functionality: It offers Alternate Mode support which allows the USB Type-C connector to carry non-USB signals like DisplayPort or Thunderbolt, making it highly versatile for multimedia applications.
• Signal Conditioning: The device provides signal conditioning, enhancing signal quality by performing equalization on the deteriorated input signal, followed by de-emphasis on the output, improving the performance over long cable distances.
• Low Power Consumption: Designed with power efficiency in mind, it operates with minimal power consumption, making it an ideal choice for battery-powered devices.
• Adjustable Gain Settings: The TUSB546A-DCIRNQR offers programmable equalization and de-emphasis to optimize performance over a variety of physical mediums.
• I2C Interface: The integrated I2C interface allows for configuration and enhanced control of the redriver switch.

Applications

• USB Type-C enabled laptops and PCs
• Docking stations
• Monitors and displays
• External storage devices
• Smartphones and tablets

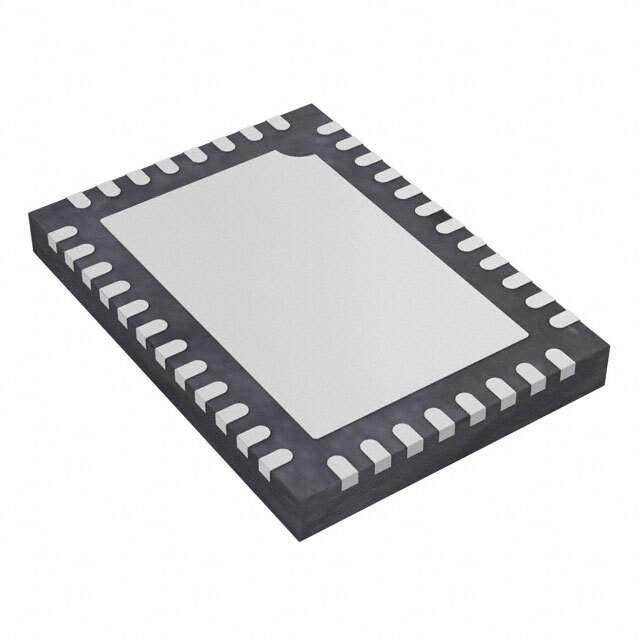

The TUSB546A-DCIRNQR is offered in a compact QFN package and is designed for easy integration into system designs, providing a reliable solution for enhancing signal integrity in a variety of USB Type-C applications. With its robust feature set and Texas Instruments' commitment to quality, this redriver switch is an excellent choice for designers looking to improve the performance and reliability of their USB Type-C connections.
