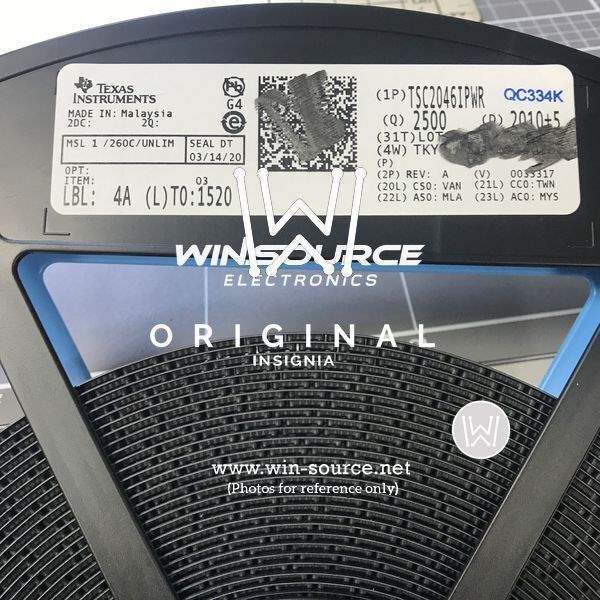

Texas Instruments TSC2046IPWR Touch Screen Controller

The TSC2046IPWR from Texas Instruments is a highly integrated touch screen controller which operates on the principle of resistive touch technology. It is designed to provide a flexible and cost-effective solution for consumer, automotive, and industrial touch-screen applications. The controller is an upgraded version of the popular ADS7846 touch screen controller, with added features and enhanced performance.

This touch screen controller is capable of measuring both X and Y coordinates of the touch location, as well as pressure, and can also measure an auxiliary input. It supports a 4-wire touch screen interface and is equipped with a 12-bit analog-to-digital converter (ADC) that ensures high precision touch coordinates. The TSC2046IPWR operates with a single supply anywhere from 2.7V to 5.25V, making it versatile for various system voltage levels.

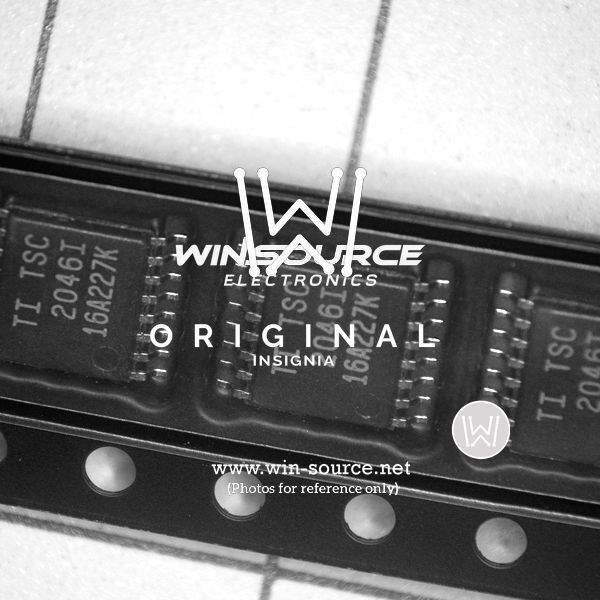

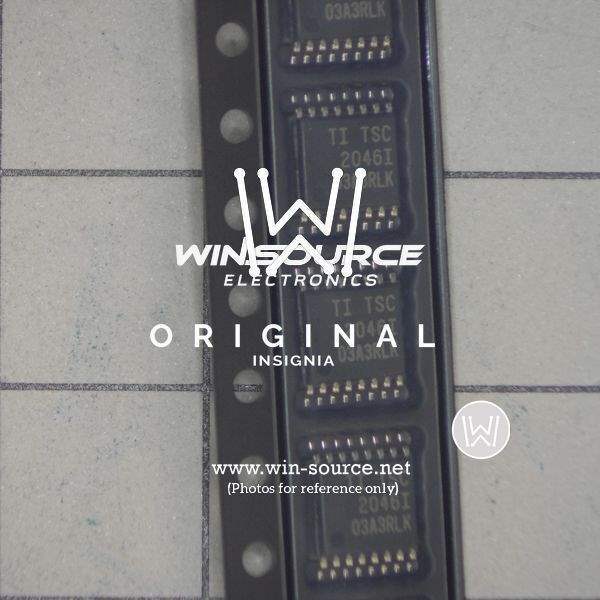

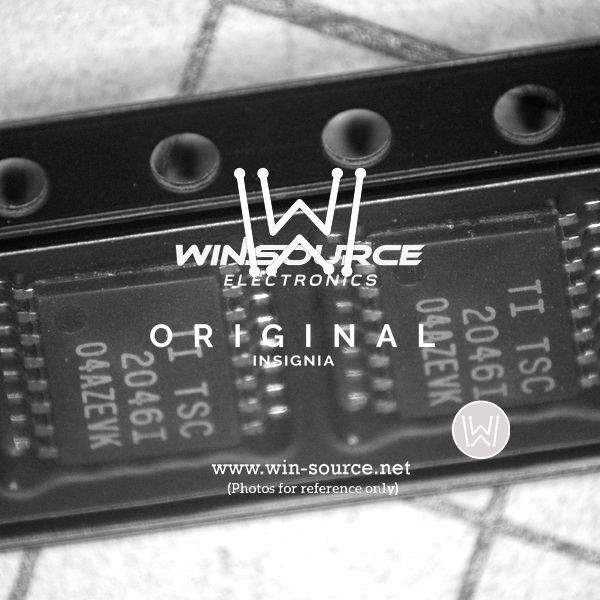

The device communicates with microprocessors or microcontrollers via a serial interface, which is compatible with SPI, QSPI, and MICROWIRE protocols, allowing for easy integration into existing systems. The TSC2046IPWR is offered in a small TSSOP-16 package, which is ideal for space-constrained applications.

Key features of the TSC2046IPWR include on-chip temperature measurement, touch pressure measurement, and an onboard programmable voltage reference. The device also has an automatic power-down feature that helps to conserve power, making it suitable for battery-powered devices. The programmable resolution of the ADC can be set to either 8-bits or 12-bits, giving designers the flexibility to choose between faster conversion speed and higher precision.

For design flexibility, the TSC2046IPWR also includes a penIRQ feature that notifies the host processor when the screen is touched, thus reducing processor overhead by eliminating the need for continuous polling. This makes it an excellent choice for applications where power consumption and processor resources are critical considerations.

In summary, the TSC2046IPWR is a versatile, efficient, and reliable solution for adding touch screen functionality to a wide range of electronic devices. Its ease of integration, coupled with Texas Instruments' reputation for quality, makes it a go-to choice for developers looking to implement touch interfaces in their products.
