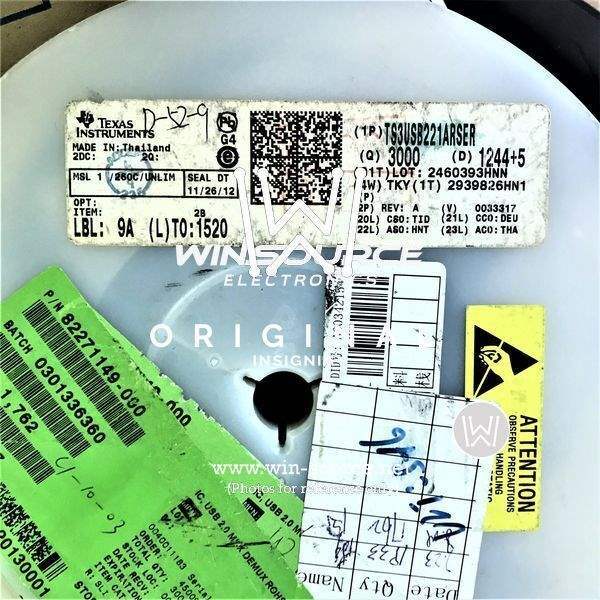

The TS3USB221ARSERG4 is a high-speed USB 2.0 (480 Mbps) 1:2 multiplexer/demultiplexer switch designed by Texas Instruments, which offers a versatile solution for USB signal switching requirements. This compact and efficient integrated circuit is ideal for a variety of applications, ranging from laptops and docking stations to desktop computers and peripherals.

Key Features

• High-Speed Performance: Supports data rates up to 480 Mbps, making it suitable for USB 2.0 high-speed data transfer applications.
• Low On-State Resistance (R<sub>ON): The low on-state resistance of the switch ensures minimal signal distortion and voltage drop, thus maintaining signal integrity.
• Low Power Consumption: Designed with energy efficiency in mind, the TS3USB221ARSERG4 consumes minimal power, which is critical for battery-powered devices.
• Bidirectional Operation: The switch can be used in both multiplexer and demultiplexer modes, offering design flexibility.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuitry guards against damage from static electricity, enhancing the durability of the device.
• Small Form Factor: The compact QFN (Quad Flat No-Lead) package allows for space-saving designs, making it suitable for portable electronics where board space is at a premium.

Applications

The versatility of the TS3USB221ARSERG4 lends itself to a wide range of applications, including:

• USB port expansion and switching in laptops and desktops
• Peripheral sharing devices
• USB docking stations and hubs
• Smartphones and tablets with USB functionalities

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability. The TS3USB221ARSERG4 is backed by rigorous testing and quality control processes, ensuring that it meets the high standards expected from TI products. Additionally, developers can access a wealth of support resources, including technical documentation, application notes, and design tools, to facilitate the integration of the switch into their projects.
