Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features USB Switch IC 1 Channel 10-UMLP (1.8x1.4)
Manufacturer ON Semiconductor
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 10-UFQFN
Case / Package 10-UMLP (1.8x1.4)
Family Name FSUSB45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number FSUSB45UMXTR, FSUSB45UMXCT, FSUSB45UMXDKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872343-FSUSB45UMX
Ultra Librarian 3D Model Ultra Librarian FSUSB45UMX CAD Model

Description

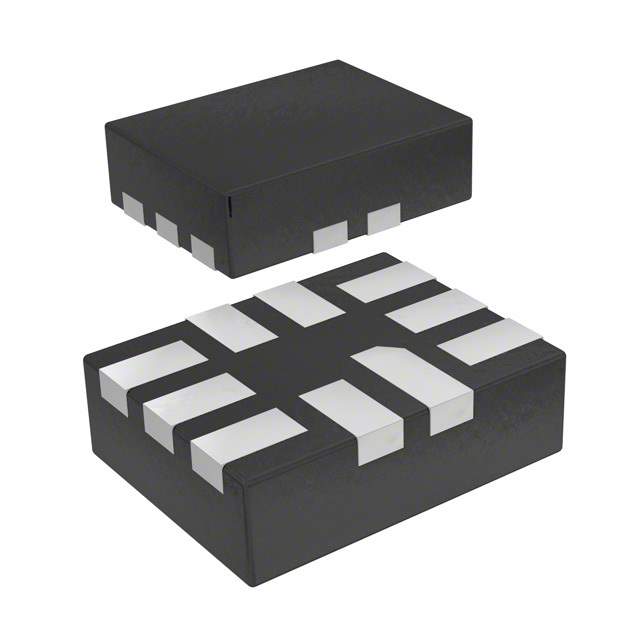

ON Semiconductor FSUSB45UMX USB 2.0 High-Speed Switch

The ON Semiconductor FSUSB45UMX is a versatile USB 2.0 high-speed (480 Mbps) switch that is designed to provide an efficient and reliable solution for multiplexing signals in various USB applications. This advanced switch is specifically engineered to address the needs of portable electronic devices where power conservation and space-saving are critical considerations.

Featuring a bi-directional, low on-capacitance, and low on-resistance design, the FSUSB45UMX facilitates a high-fidelity signal transfer which is essential for maintaining signal integrity in high-speed USB communication. The device is optimized for low-power operation, drawing minimal quiescent current, which is particularly beneficial for battery-powered gadgets such as smartphones, tablets, and laptops.

The FSUSB45UMX is equipped with two single-pole, double-throw (SPDT) switches. This configuration allows for the seamless routing of differential USB data signals (D+ and D-) to two possible destinations, making it an ideal choice for applications that require switching between USB ports or signal paths. The switch is controlled via a single input (SEL), which simplifies the logic control interface and reduces the need for additional control lines.

One of the key features of the FSUSB45UMX is its built-in ESD protection circuitry, which provides robust protection against electrostatic discharge events. This protection ensures the longevity and reliability of both the switch and the connected USB devices, safeguarding against potential damage caused by ESD events that commonly occur during plugging and unplugging of USB connectors.

The ON Semiconductor FSUSB45UMX is offered in a space-efficient, ultra-small µDFN-10 package, which is highly beneficial for space-constrained applications. The compact footprint of the device allows designers to minimize PCB space usage while still delivering the full functionality required for high-speed USB switching.

Overall, the FSUSB45UMX is a high-performance, low-power USB switch that delivers the reliability and efficiency needed in today's portable and high-speed data communication applications. Its integration into a system ensures seamless USB signal management while maintaining signal integrity and protecting against ESD, all within a minimal form factor.
