The TLV7021DCKR is a high-performance, nanopower comparator from Texas Instruments, designed to meet the needs of a wide range of applications that require low power consumption without sacrificing speed and precision. This comparator is part of the TLV7021 family, known for its ultra-low power operation and tiny form factor, making it an ideal choice for portable and battery-powered applications where efficiency and space are critical concerns.

Key Features:

• Low Power Consumption: The TLV7021DCKR boasts a very low quiescent current, typically just 335 nA, which helps extend battery life in portable devices.
• Fast Response Time: Despite its low power usage, this comparator does not compromise on speed, offering a propagation delay of typically 260 ns, ensuring quick response times for critical applications.
• Wide Supply Voltage Range: It operates over a broad supply voltage range from 1.6 V to 6.5 V, allowing for flexible integration into various circuit designs.
• Push-Pull Output: The device features a push-pull output stage which eliminates the need for an external pull-up resistor and can directly drive loads.
• Excellent Temperature Stability: The TLV7021DCKR is designed to maintain consistent performance over an extended temperature range from -40°C to +125°C, suitable for demanding environments.

Applications:

With its robust feature set, the TLV7021DCKR can be used in an array of applications, including:

• Battery-powered devices
• Portable medical equipment
• Energy harvesting systems
• Window comparators
• Signal level translation
• Threshold detectors
• Consumer electronics

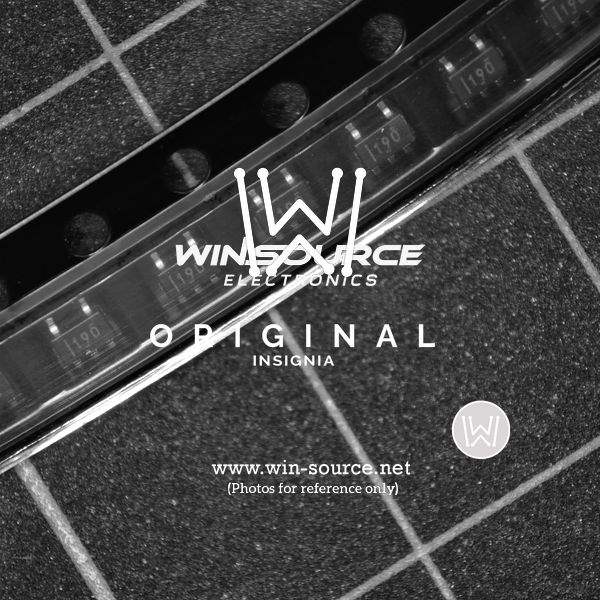

The TLV7021DCKR comes in a compact 5-pin SC70 package, which is highly space-efficient and suitable for designs where space is at a premium. Its combination of low power, high precision, and small footprint make it a versatile component for designers looking to optimize their systems for energy efficiency and size.
