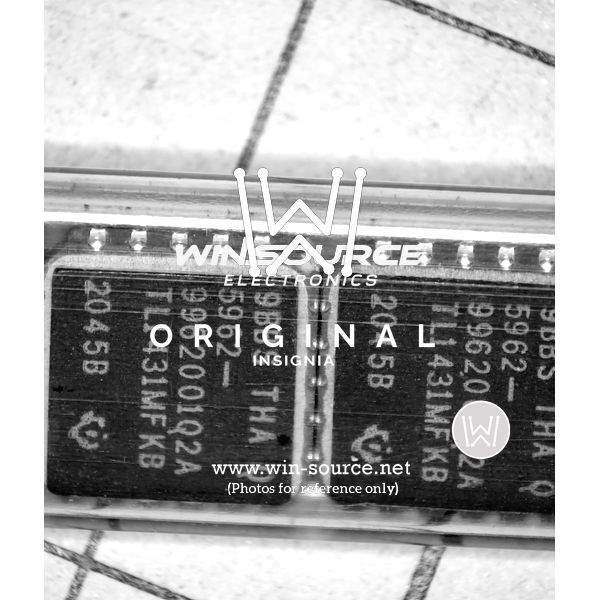

Introducing the TL1431MFKB Precision Programmable Reference from Texas Instruments

The TL1431MFKB is a high-precision programmable voltage reference from Texas Instruments, designed to offer a flexible solution for a wide range of applications. This device is a significant component in the industry, known for its stability and accuracy in providing a reference voltage that can be set by the user.

Constructed with advanced semiconductor technology, the TL1431MFKB features a typical temperature coefficient of just 50 ppm/°C, ensuring stable performance over the entire industrial temperature range of -40°C to 85°C. This precision voltage reference can be programmed to any value between Vref (approximately 2.495 V) and 36 V using two external resistors. This flexibility makes it an ideal choice for many adjustable power supplies, precision regulators, and analog-to-digital converter (ADC) applications.

The device's low output noise and low dynamic output impedance contribute to a clean and stable reference signal, which is essential for high-resolution conversion and accurate control systems. The TL1431MFKB also features a sink current capability of 1 mA to 100 mA, catering to a broad spectrum of load conditions.

The TL1431MFKB is available in a TO-92 package, which is a through-hole mounting design that simplifies board layout and provides reliable mechanical stability. This package is widely used and recognized for its ease of integration into various circuit designs.

With its impressive specifications and reliability, the TL1431MFKB is suitable for numerous applications, including but not limited to:

• Adjustable power supplies
• Precision regulators
• Data acquisition systems
• Battery chargers
• Motor control

For engineers and designers looking for a dependable and precise voltage reference, the TL1431MFKB from Texas Instruments stands out as a top choice. Its programmability, stability, and robustness make it a versatile component for ensuring the precision and efficiency of electronic systems.
