Introducing the TCA9617BDGKR from Texas Instruments

The TCA9617BDGKR is a robust I²C bus buffer that extends the capabilities of the I²C protocol by enabling system designers to overcome common communication challenges. Manufactured by Texas Instruments, a leader in semiconductor solutions, this device is designed to enhance the performance and reliability of applications that require bidirectional communication between devices.

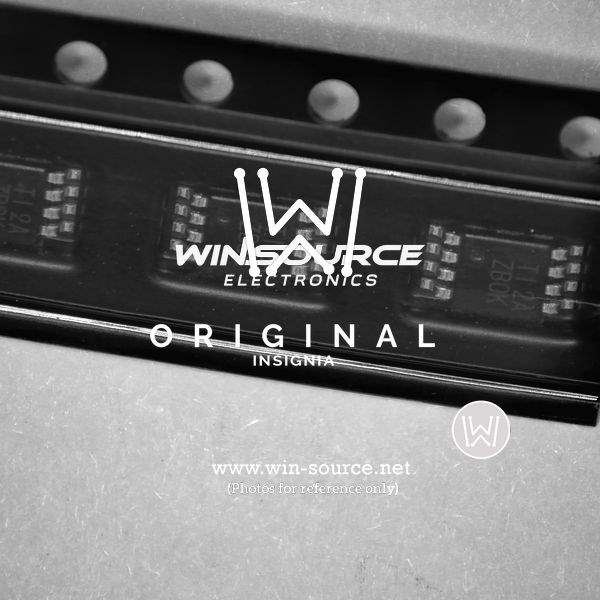

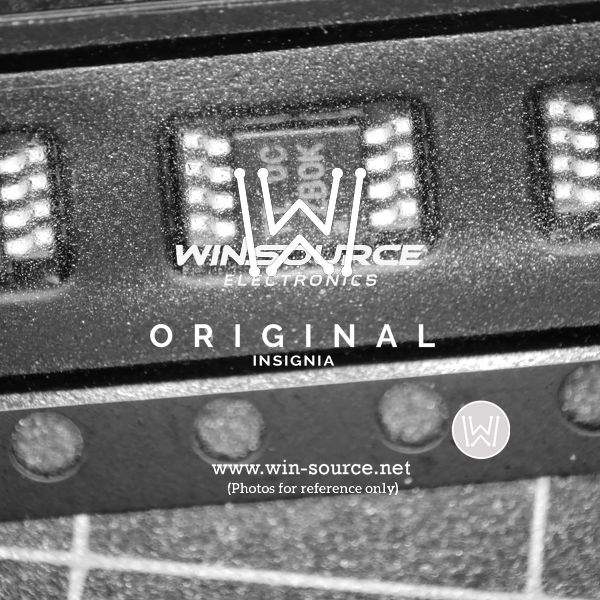

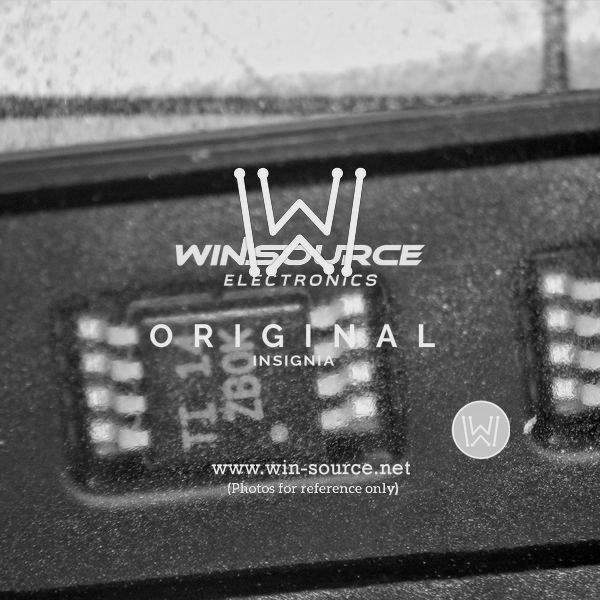

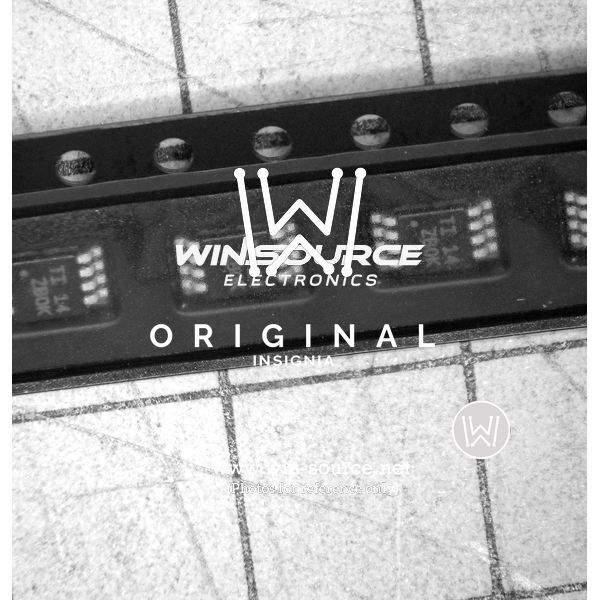

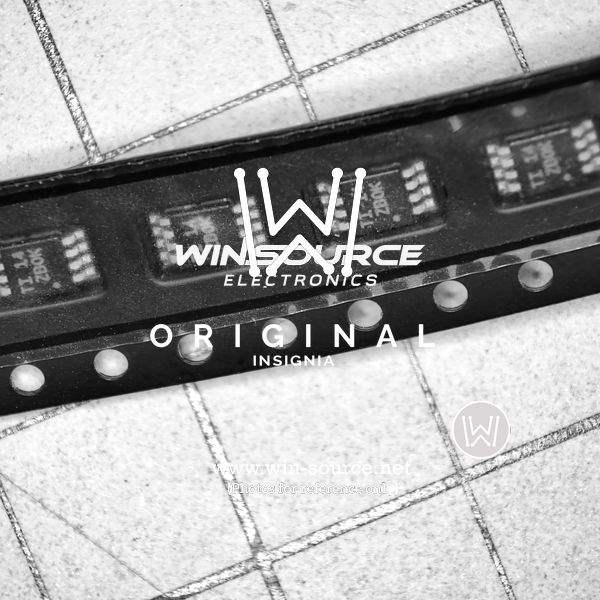

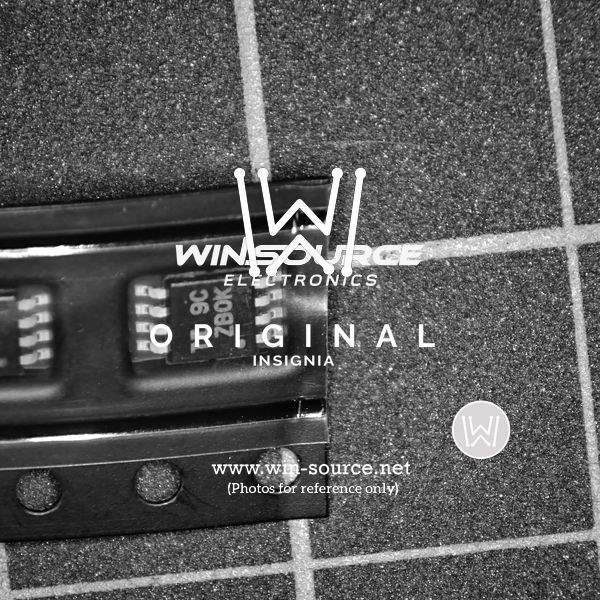

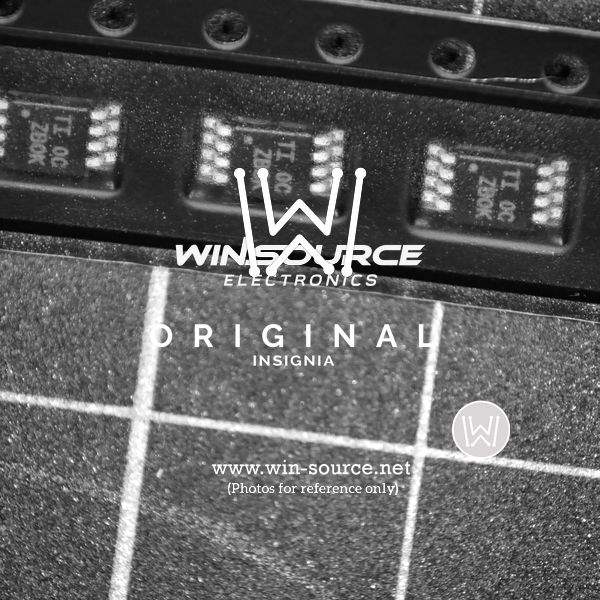

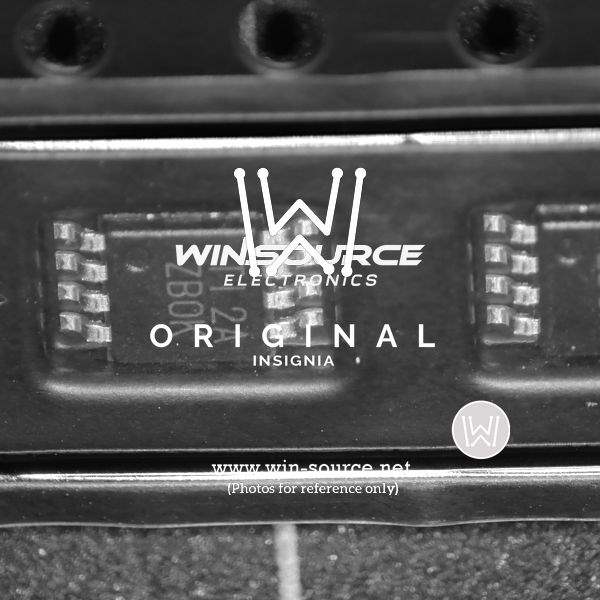

This particular model is part of the TCA9617B series and comes in an MSOP (DGK) package with 8 pins. It operates over a wide supply voltage range of 2.3V to 5.5V, making it versatile for various system voltages. The TCA9617BDGKR is especially useful in applications where signal integrity is paramount, as it provides level shifting between devices operating at different voltage levels and strong buffering capabilities that allow for extended cable lengths and more connected devices.

Key Features

• Level Translation: The device supports bidirectional level shifting between different voltage domains from 0.8V to 5.5V, allowing for seamless communication between devices operating at different voltage levels.
• Enhanced Signal Integrity: It features strong drive capability, which ensures signal integrity is maintained even over long cables or with multiple devices connected to the I²C bus.
• Hot-Swap Capability: The TCA9617BDGKR includes a hot-swap feature that prevents data corruption during live insertion and removal of I²C devices.
• Fail-Safe Feature: It is designed with a fail-safe feature that prevents system lock-up and data corruption in the event of an I²C bus stuck at a low condition.
• Noise Suppression: The device incorporates glitch suppression to protect against data corruption caused by spikes and other transient conditions on the bus lines.

Applications that benefit from the TCA9617BDGKR's capabilities include industrial control systems, consumer electronics, automotive networks, and any other systems where I²C communication reliability is critical. Its small footprint and advanced features make it an excellent choice for designers looking to optimize their I²C bus systems for both performance and reliability.

Overall, the TCA9617BDGKR by Texas Instruments is a powerful solution for enhancing I²C bus communication in a wide range of electronic systems, ensuring that devices communicate effectively and reliably, no matter the conditions.
