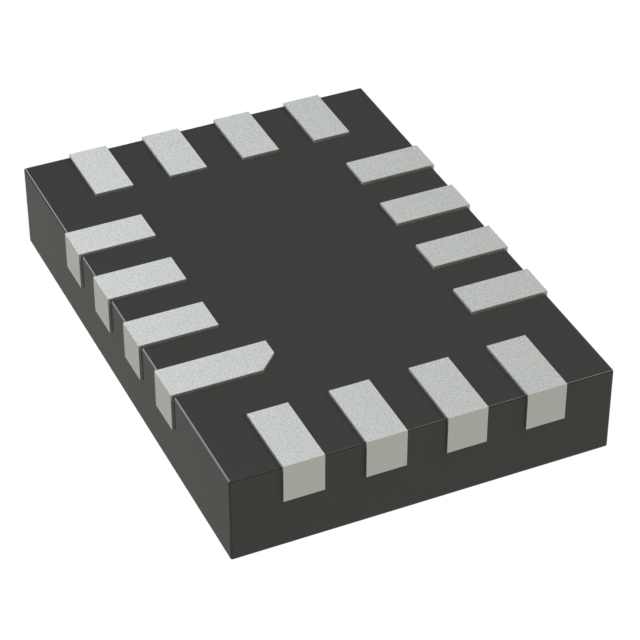

Same model may have multiple batches, images only for reference.
NXS0506GUX Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NXS0506GUX

Part No NXS0506GUX
Manufacturer Nexperia USA Inc.
Catalog Logic - Translators, Level Shifters
Description ANALOG & LOGIC
Datasheet
NXS0506GUX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 6
Voltage - VCCA 1.1 V ~ 1.95 V
Voltage - VCCB 1.7 V ~ 3.6 V
Output Type Push-Pull
Data Rate 104Mbps
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-XFQFN
Supplier Device Package 16-XQFN (1.8x2.6)
Ultra Librarian 3D Model Ultra Librarian NXS0506GUX CAD Model
