Product Overview: SN75LVCP412ARTJT

The SN75LVCP412ARTJT is a high-performance, dual-channel 2:1 multiplexer and demultiplexer designed by Texas Instruments for signal conditioning in applications that require high-speed data transfer and signal integrity. This integrated circuit is a part of the LVCP family and is specifically engineered to manage PCI Express (PCIe) signals, although its versatility allows it to be used in various other high-speed serial interfaces.

Key Features

• Signal Conditioning: The SN75LVCP412ARTJT offers signal conditioning capabilities that include equalization, de-emphasis, and signal regeneration, which are essential for maintaining signal integrity over long PCB traces or cables.
• High Data Rates: It supports data rates up to 11.3 Gbps, making it suitable for handling the bandwidth requirements of PCIe Gen 1, Gen 2, and Gen 3 interfaces.
• Dual Channel Design: The device includes two channels that can be independently configured, providing design flexibility and the ability to support two separate data paths.
• Low Power Consumption: Designed with power efficiency in mind, it operates with a minimal power dissipation, which is critical for thermal management in dense electronic systems.
• Adaptive Equalization: The adaptive equalization feature automatically adjusts to optimize performance over various channel lengths and conditions.

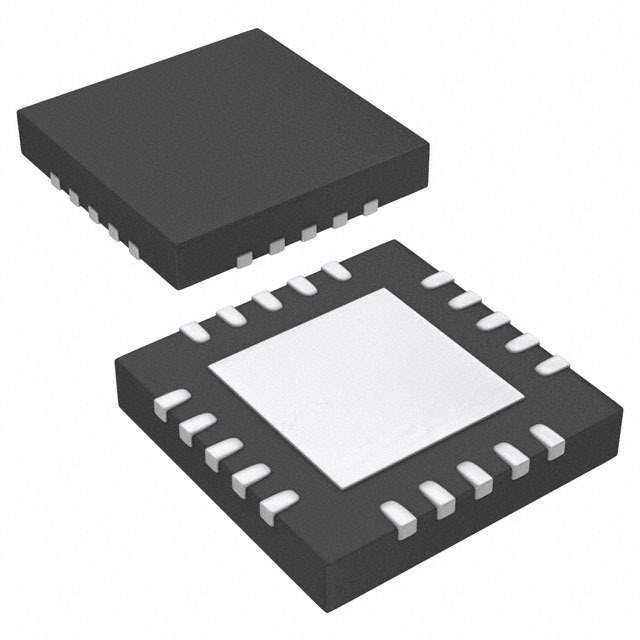

• Small Form Factor: The SN75LVCP412ARTJT comes in a compact 3x3 mm QFN package, which is ideal for space-constrained applications.

Applications

The SN75LVCP412ARTJT is primarily used in applications that demand high-speed data transmission and signal integrity. It is particularly well-suited for:

• Datacenter and enterprise storage systems
• High-performance computing
• Networking equipment such as switches and routers
• Signal repeaters and redrivers for extending PCIe signals

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the SN75LVCP412ARTJT is no exception. It is built to meet the stringent requirements of high-speed communication systems and is backed by TI's rigorous testing and validation processes. This ensures that customers can integrate this component into their designs with confidence, knowing it will deliver consistent performance and longevity.
