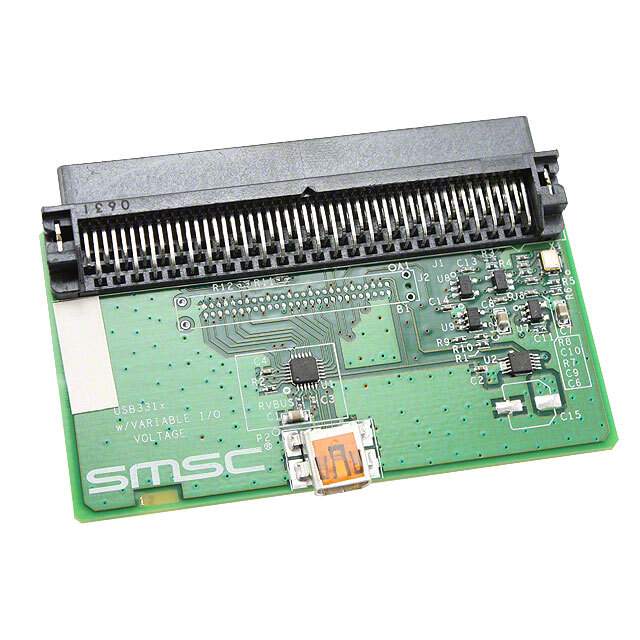

The EVB-USB3317-CP is a high-quality evaluation board designed by Microchip Technology to showcase the capabilities of the USB3317 USB 2.0 Transceiver. This compact and versatile board is an essential tool for engineers and developers looking to integrate USB functionality into their designs with the USB3317, a highly integrated USB 2.0 transceiver chip that supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data transfer modes.

Key Features

• Integrated with the USB3317, a Hi-Speed USB 2.0 Transceiver with 1.8V ULPI Interface.
• Supports UTMI+ Low Pin Interface (ULPI) for easy integration with ULPI compliant link layers.
• Operates at low voltage levels (1.8V core) for reduced power consumption, crucial for battery-powered applications.
• On-board USB connector for direct connection to USB hosts.
• Compliant with USB 2.0 specification for full interoperability with USB devices and hosts.

Applications

The EVB-USB3317-CP is ideal for development in a variety of applications that require USB connectivity. This includes but is not limited to:

• Portable devices such as smartphones, tablets, and GPS units.
• Consumer electronics like digital cameras, audio players, and game consoles.
• Industrial control and automation systems.
• Medical devices requiring reliable USB communication.
• Networking equipment such as modems, routers, and network-attached storage devices.

Design Support

Microchip Technology provides comprehensive design support for the EVB-USB3317-CP with technical documentation, reference designs, and software tools to help accelerate the development process. The evaluation board comes with all necessary hardware to get started, enabling developers to quickly prototype and test their USB interface designs.

Whether you are an experienced engineer or just starting with USB integration, the EVB-USB3317-CP evaluation board from Microchip Technology is a reliable and user-friendly platform that provides a seamless development experience for all your USB-based projects.
