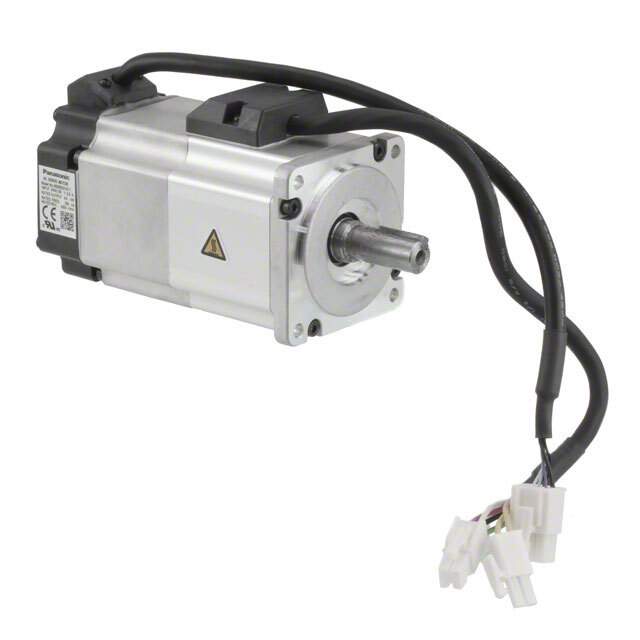

MSMD021G1T Real Image
Same model may have multiple batches, images only for reference.

MSMD021G1T

Part No MSMD021G1T
Manufacturer Panasonic
Catalog PMIC - Motor Drivers, Controllers
Description SERVOMOTOR 3000 RPM 100V  /  AC Motor Servomotor 3000 RPM 200W Incremental 100VAC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Motors, Solenoids, Driver Boards/Modules>Motors - AC, DC
Mfr Panasonic Industrial Automation Sales
Series MINAS A5
Package Bulk
Type AC Motor
Function Servomotor
Voltage - Rated 100VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 90.65 / 640
Power - Rated 200W
Encoder Type Incremental
Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.433" (11.00mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Wire Leads
Features Brake, Key
Torque - Max Momentary (oz-in / mNm) 270.5 / 1910
Temperature Range - Operating 0°C ~ 40°C
Approval Agency CE, CSA, cULus, TUV, UL
Weight 2.8 lbs (1.3 kg)
Base Product Number MSMD021
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8501.31.4000
Other Names MSMD021G1T-ND,1110-3693
Standard Package 1
Win Source Part Number 1080620-MSMD021G1T
Ultra Librarian 3D Model Ultra Librarian MSMD021G1T CAD Model

Description

The Panasonic MINAS A5 AC Motor is a servomotor with a rated voltage of 100VAC and a rated power of 200W.

  • Motor Type: Servomotor
  • Rated Voltage: 100VAC
  • Rated Power: 200W
  • Rated Torque: 90.65 oz-in / 640 mNm
  • Maximum Momentary Torque: 270.5 oz-in / 1910 mNm
  • Encoder Type: Incremental
  • Speed: 3000 RPM
  • Win Source Part Number: 1080620-MSMD021G1T
  • Approvals: CE, CSA, cULus, TUV, UL
