The Texas Instruments HD3SS460IRNHT is a high-performance USB Type-C and DisplayPort multiplexer that offers a cutting-edge solution for digital connectivity. This versatile IC is designed to meet the needs of the latest consumer electronics, providing a seamless interface for data and video signals through the increasingly popular USB Type-C connector.

Key Features

• USB Type-C and DisplayPort Integration: The HD3SS460IRNHT supports both USB 3.1 data rates up to 10 Gbps and DisplayPort 1.4, ensuring compatibility with a wide range of devices and high-resolution displays.
• High-Speed Switching: With its advanced switching capabilities, the device can dynamically alternate between USB and DisplayPort modes, offering flexibility for end-users.
• Bi-Directional Operation: The multiplexer can operate in both directions, accommodating the reversible nature of the USB Type-C connector, which enhances user experience by allowing plug-in from either direction.
• Low Power Consumption: Designed with energy efficiency in mind, the HD3SS460IRNHT minimizes power usage, making it suitable for portable and battery-powered applications.
• Robust ESD Protection: The device includes built-in electrostatic discharge (ESD) protection to safeguard against common electrical surges, ensuring reliability and longevity.

Applications

The versatility of the HD3SS460IRNHT makes it ideal for a wide array of applications. It is particularly well-suited for:

• USB Type-C docking stations
• Laptops, tablets, and smartphones with USB Type-C ports
• Monitors and high-definition displays with DisplayPort inputs
• USB Type-C to DisplayPort cables and adapters

Technical Specifications

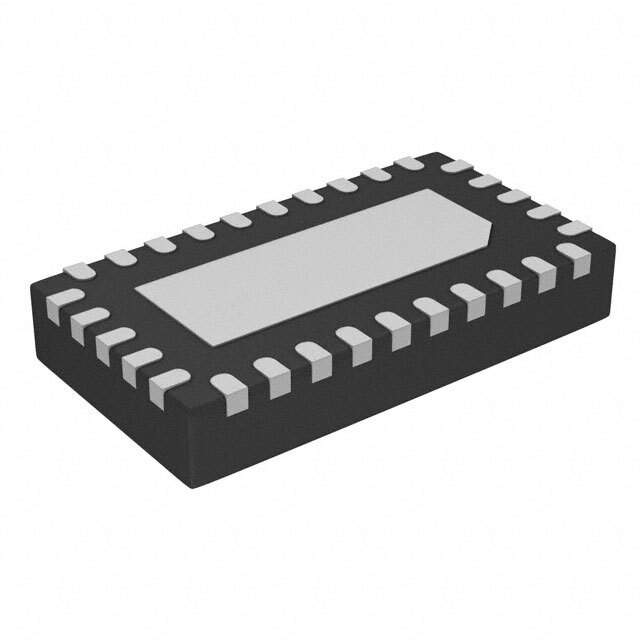

The HD3SS460IRNHT is offered in a compact QFN package and is specified over a wide temperature range. It is compliant with the latest standards for USB and DisplayPort, ensuring interoperability with the newest devices on the market.

With its robust design and advanced features, the Texas Instruments HD3SS460IRNHT stands out as a superior choice for manufacturers looking to incorporate USB Type-C and DisplayPort functionalities into their products.
