The Texas Instruments HD3SS3415RUAT is a high-performance, 4-channel differential switch designed to support USB 3.1 Gen 1 and DisplayPort 1.4 applications. This versatile switch allows for the multiplexing of high-speed signals, making it an ideal solution for a variety of consumer electronics, including laptops, tablets, docking stations, and monitors.

Key Features

• High-Speed Performance: The HD3SS3415RUAT supports data rates up to 10 Gbps for USB 3.1 Gen 1 and up to 8.1 Gbps per lane for DisplayPort 1.4, ensuring fast and efficient data transfer.
• Flexible Switching: With four differential channels, this switch can handle multiple high-speed protocols, providing flexibility for designers to route signals as required.
• Low Power Consumption: Designed with power efficiency in mind, the HD3SS3415RUAT minimizes power usage, making it suitable for portable and battery-operated devices.
• Signal Integrity: The switch maintains excellent signal integrity, even at high data rates, thanks to its low crosstalk and high bandwidth capabilities.

Applications

• USB 3.1 Gen 1 and USB 2.0 Multiplexing
• DisplayPort 1.4 Data and Control Path Management
• High-Speed Signal Routing for Consumer Electronics
• Docking Stations and Port Replicators

Quality and Reliability

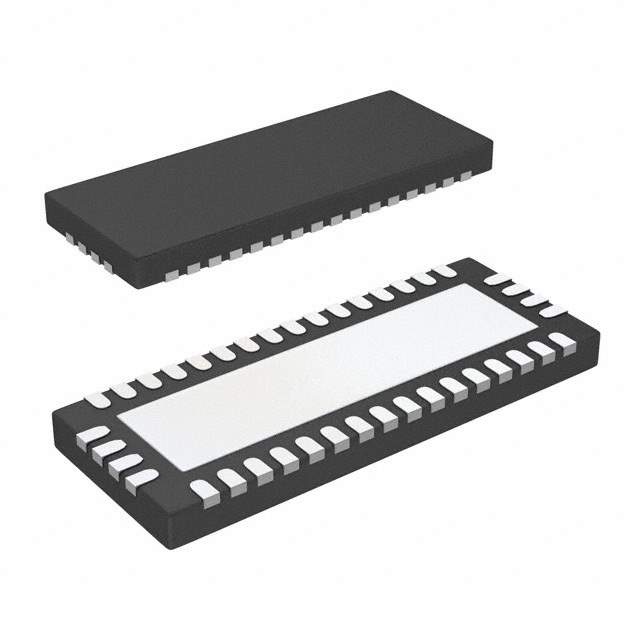

The HD3SS3415RUAT is built with Texas Instruments' commitment to quality and reliability. It is packaged in a compact 42-pin UQFN package with a footprint of just 3.5mm x 9mm, making it suitable for space-constrained applications. Additionally, it is designed to meet or exceed the stringent requirements of the industry, ensuring a reliable operation across various temperature ranges.

Ordering Information

For ordering, the HD3SS3415RUAT is available in tape and reel packaging, facilitating easy integration into manufacturing processes. For detailed product specifications, technical documents, and sample requests, please visit the Texas Instruments website or contact their sales and support team.
