DS64BR401SQ/NOPB - Quad Bi-Directional Retimer with Equalization and De-Emphasis

The DS64BR401SQ/NOPB from Texas Instruments is a high-performance, quad-channel bi-directional retimer that is designed to enhance signal integrity for high-speed serial links. This advanced integrated circuit is an ideal solution for applications that require extended cable lengths and improved signal integrity in noisy environments. The device is particularly well-suited for use in data centers, high-performance computing, and networking equipment.

Each of the four channels of the DS64BR401SQ/NOPB supports data rates up to 6.25 Gbps, making it capable of handling high-bandwidth data streams with ease. The retimer incorporates both input equalization and output de-emphasis, which work together to combat signal degradation caused by inter-symbol interference (ISI) and lossy media such as printed circuit boards (PCBs), cables, and connectors.

The input equalization feature of the DS64BR401SQ/NOPB is programmable, allowing users to optimize performance for various channel conditions. This adaptability ensures reliable data transmission over a range of different media types and lengths. On the output side, the de-emphasis feature reduces signal distortion at the receiver end, further enhancing signal quality and reducing bit error rates.

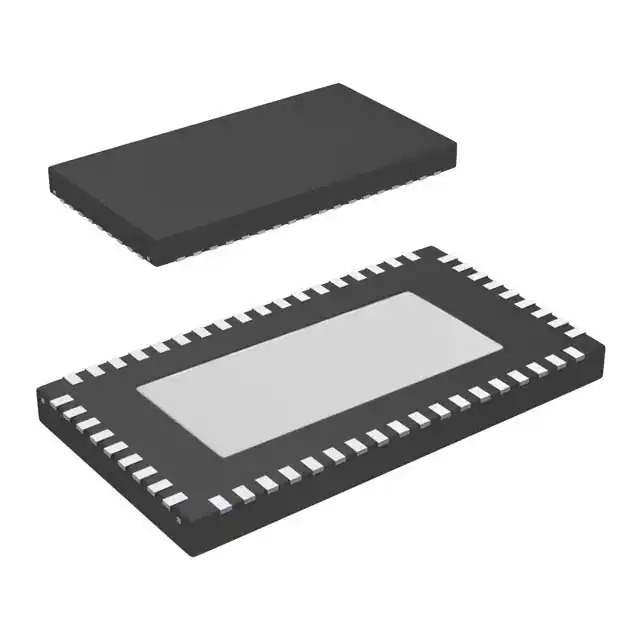

Moreover, the DS64BR401SQ/NOPB is designed with low power consumption in mind, making it suitable for power-sensitive applications. Its small form factor QFN package allows for efficient use of PCB space, while its lead-free and RoHS-compliant design ensures environmental sustainability.

Key features of the DS64BR401SQ/NOPB include:

• Four bi-directional channels with up to 6.25 Gbps data rate per channel
• Programmable input equalization and output de-emphasis
• Low power consumption for energy-efficient designs
• Small QFN package for space-constrained applications
• Lead-free and RoHS-compliant for environmental compliance

In summary, the DS64BR401SQ/NOPB from Texas Instruments is a versatile and powerful solution for enhancing signal integrity in a variety of high-speed data transmission applications. With its advanced features and low power design, it is an excellent choice for engineers looking to improve the performance and reliability of their data communication systems.
