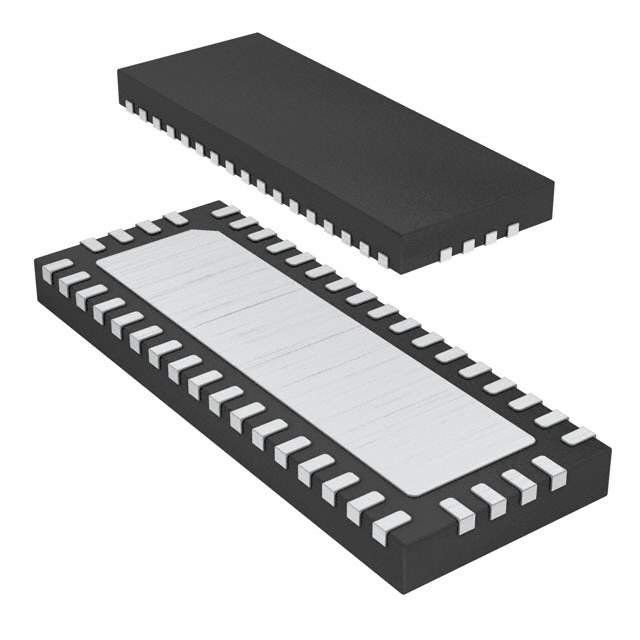

The MAX14950CTO+ is a high-performance, octal, level-translating digital isolator manufactured by Maxim Integrated. This component is designed to provide robust signal isolation for a wide range of industrial, medical, and consumer applications where signal integrity and isolation are critical for safety and functionality.

Key Features

• Isolation Voltage: The device offers a robust isolation voltage of 3.75kVrms for 60 seconds, ensuring reliable performance in electrically noisy environments.
• Data Rate: With support for data rates up to 25Mbps, the MAX14950CTO+ is well-suited for high-speed communication requirements.
• Channels: It features eight unidirectional channels, providing flexibility in interfacing between different voltage domains.
• Integration: The device integrates an oscillator and a high-frequency transformer driver to reduce external components and simplify design.
• Power Supply: The MAX14950CTO+ operates with dual power supplies, ranging from 3.0V to 5.5V, accommodating various system-level power requirements.
• Package: It comes in a compact, 16-pin, wide-body SOIC package, making it suitable for space-constrained applications.

Applications

The MAX14950CTO+ is ideal for use in a variety of applications, including:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Data communication in mixed-voltage systems
• Isolated SPI, I2C, or UART interfaces

Reliability and Safety

Maxim Integrated ensures that the MAX14950CTO+ meets high reliability and safety standards. The device is designed to withstand harsh industrial environments and provides continued performance with its built-in fail-safe features. It also complies with relevant international safety standards, making it a trusted choice for critical applications.
