Texas Instruments DAC34SH84EVM Product Overview

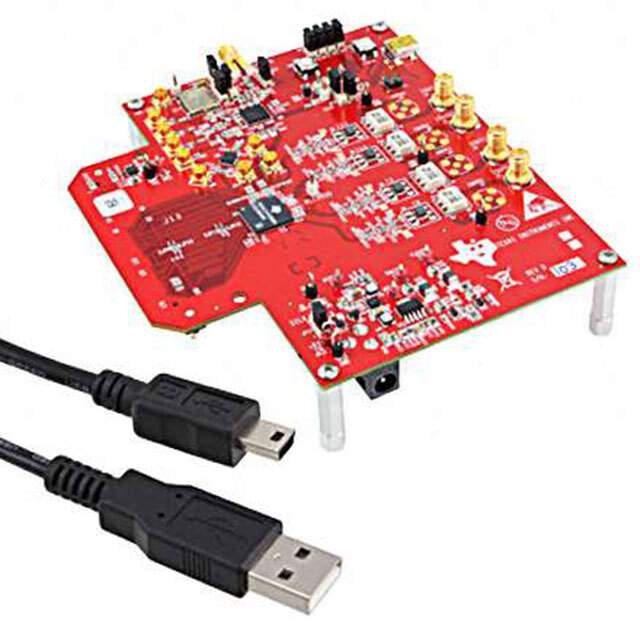

The DAC34SH84EVM is a state-of-the-art evaluation module designed by Texas Instruments to demonstrate the capabilities of the DAC34SH84, a high-performance, quad-channel, 16-bit digital-to-analog converter (DAC). This evaluation module (EVM) is an essential tool for engineers and designers who wish to explore the features and performance of the DAC34SH84 for applications in telecommunications, test equipment, and automated test equipment (ATE) systems.

Key Features of the DAC34SH84EVM:

• High-Speed DAC: The DAC34SH84 is capable of converting digital signals to analog at high speeds, with a maximum sampling rate of 1.5 GSPS, making it ideal for demanding applications that require fast data throughput.
• Quad-Channel Output: The EVM supports four DAC channels, allowing for simultaneous output of multiple analog signals, which is beneficial for complex signal generation and processing tasks.
• Flexible Interface: The EVM includes a variety of digital interface options, such as LVDS (Low Voltage Differential Signaling) and JESD204B, providing versatility for system integration and compatibility with a wide range of digital sources.
• Easy-to-Use Software: Texas Instruments provides an intuitive graphical user interface (GUI) that simplifies the configuration and control of the DAC34SH84, enabling users to quickly set up the EVM and modify settings to suit their specific requirements.
• Comprehensive Documentation: The EVM comes with detailed documentation, including a user guide, schematic diagrams, and application notes, to assist users in understanding the operation and capabilities of the module.

Applications:

The DAC34SH84EVM is suitable for a variety of applications, including:

• Wireless communication infrastructure
• Direct digital synthesis (DDS)
• Instrumentation and test equipment
• Complex waveform generation

With its high-speed performance, multiple output channels, and comprehensive support materials, the DAC34SH84EVM is an invaluable tool for professionals looking to harness the power of the DAC34SH84 DAC for their next-generation electronic designs.
