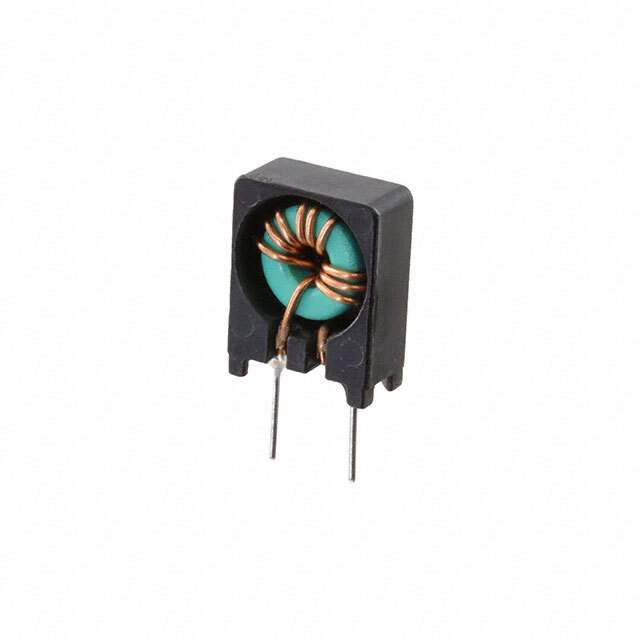

SNT-D20 Real Image
Same model may have multiple batches, images only for reference.

SNT-D20

Part No SNT-D20
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-D20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 10 µH @ 100 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 45Ohm
Temperature Range - Operating 20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-D
Other Names UDLSNT0D200000,399-SNT-D20
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276818-SNT-D20
Ultra Librarian 3D Model Ultra Librarian SNT-D20 CAD Model

Description

The SNT-D20 is a common mode choke filter manufactured by KEMET.

  • Part Number: 1276818
  • Current Rating: 1.5A
  • Standard Package: 1,000
  • Filter Type: Signal line
  • Height: 0.500" (12.70mm)
  • Lines: Two
  • Inductance: 10 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 45Ohm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 2 PC Pin
  • Operating Temperature Range: 20°C ~ 60°C
