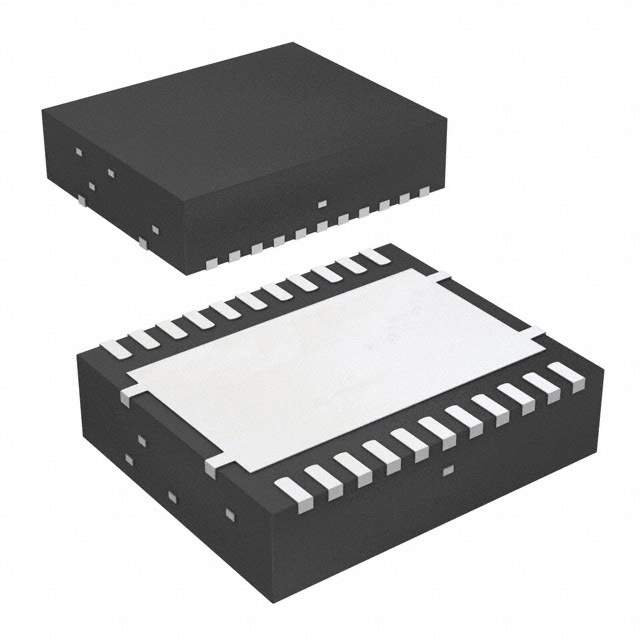

The Texas Instruments CSD96371Q5M is a high-performance, synchronous buck NexFET™ Smart Power Stage designed to deliver exceptional power efficiency and control for a wide range of applications. This compact device integrates the driver IC and power MOSFETs into a small 5mm x 6mm outline, making it an ideal solution for space-constrained applications.

Key Features

• High Efficiency: The CSD96371Q5M features state-of-the-art control FET and synchronous rectifier MOSFET technology, providing high efficiency across the load range.
• Advanced Packaging: Utilizing Texas Instruments' proprietary SON 5x6 package, the CSD96371Q5M achieves superior thermal performance and minimal parasitic inductance.
• Integrated Driver: The integrated driver IC simplifies design and reduces component count, enhancing system reliability.
• Optimized for Switching: The device is optimized for 5V gate drive applications, offering fast switching speeds to minimize losses.
• Tri-state PWM Input: The tri-state PWM input provides a simple interface to a wide range of controllers, ensuring compatibility with existing and future designs.

Applications

The CSD96371Q5M is versatile and can be used in a variety of applications, including:

• Server and telecom power supplies
• High-density power modules
• Multi-phase VRM for CPUs, GPUs, and memory
• Point-of-load (POL) solutions

Performance and Protection

This Smart Power Stage incorporates a number of features to ensure robust performance in demanding conditions:

• Thermal Monitoring: An integrated temperature sensor allows for real-time thermal monitoring, helping to prevent overheating.
• Under-voltage Lockout (UVLO): The UVLO feature ensures stable operation by disabling the power stage if the input voltage drops below a safe threshold.
• Over-current Protection: The CSD96371Q5M includes over-current protection to safeguard the power stage and downstream components from damage due to excessive current.

Conclusion

The Texas Instruments CSD96371Q5M Smart Power Stage is a sophisticated solution that combines high efficiency, advanced integration, and comprehensive protection features, making it an excellent choice for next-generation power supply designs.
