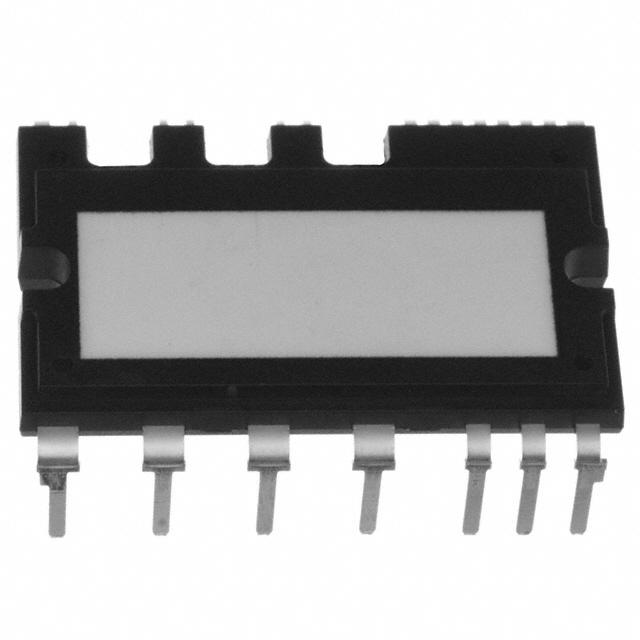

FSBS3CH60 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSBS3CH60

Part No FSBS3CH60
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description MODULE SPM 600V 3A SPMBA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 3 Phase
Current 3A
Voltage 600V
Isolation Voltage 2500Vrms
Dimension 27-PowerDIP Module (1.205", 30.60mm)
Win Source Part Number 016532-FSBS3CH60
Popularity Medium
Supply and Demand Status Limited
Quantity per package 60
Ultra Librarian 3D Model Ultra Librarian FSBS3CH60 CAD Model

Description

The Fairchild/ON Semiconductor FSBS3CH60 is a 3-phase IGBT module designed for high voltage and current applications. This module has a voltage rating of 600V and a current rating of 3A. It features an isolation voltage of 2500Vrms and is packaged in a 27-PowerDIP module (1.205", 30.60mm) configuration.

  • Status: Active
  • Supply and Demand: Limited
  • Quantity: 60 modules
