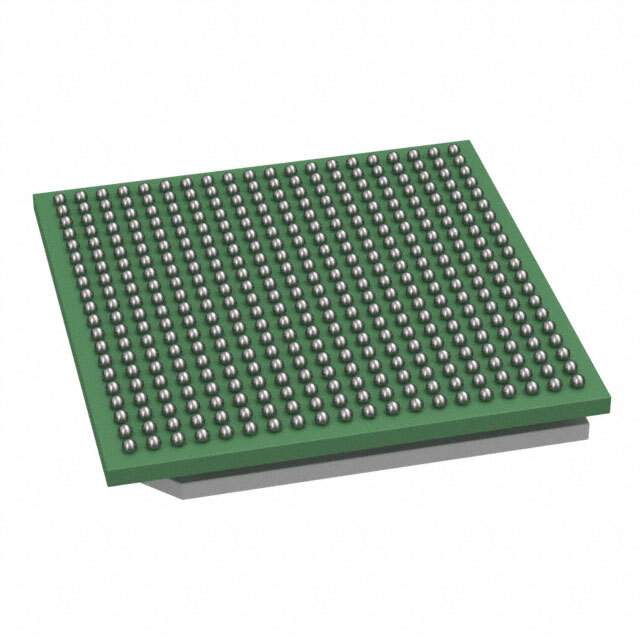

The AFE7686IABJ from Texas Instruments is a state-of-the-art quad-channel RF transceiver designed for advanced communication systems. This highly integrated device combines four receivers, four transmitters, and dual observation receivers into a single chip, making it an ideal solution for multi-antenna systems such as phased array radars, MIMO communications systems, and software-defined radios.

Key Features

• Wide Frequency Range: The transceiver supports a broad frequency spectrum, ensuring flexibility for various applications and compliance with global communication standards.
• High Integration: Integrating multiple RF channels into one package reduces system complexity and board space, leading to a more compact and cost-effective design.
• Advanced Signal Processing: On-chip digital signal processing capabilities include digital down-conversion, digital up-conversion, and a programmable finite impulse response (FIR) filter for each channel, providing enhanced signal quality and bandwidth management.
• Flexible Interface: The device features a JESD204B interface for high-speed data transfer, ensuring compatibility with modern digital processing units.

Applications

The AFE7686IABJ is suitable for a wide range of applications, including:

• Wireless infrastructure (LTE, 5G)
• Phased array radar systems
• Electronic warfare
• Test and measurement equipment

Reliability and Quality

As with all Texas Instruments products, the AFE7686IABJ is manufactured to the highest quality standards, ensuring reliable performance even in the most demanding environments. This transceiver is built to deliver consistent, high-quality communication capabilities, making it a trusted choice for engineers and designers around the world.
