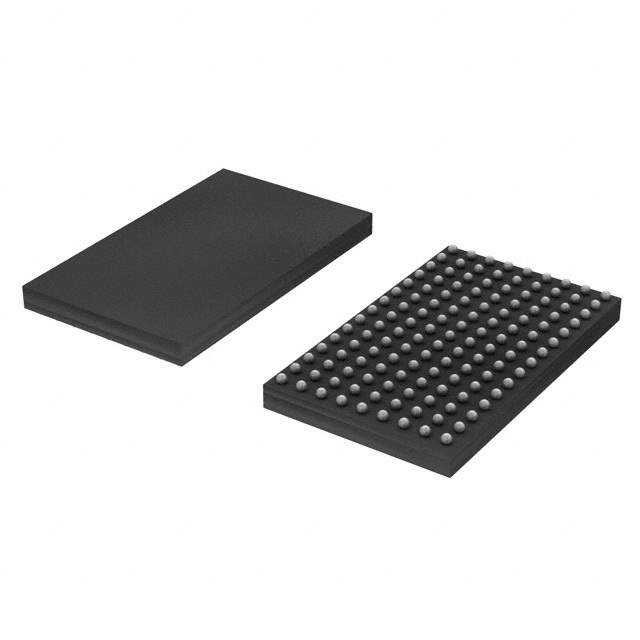

AFE5808AZCF

Part No AFE5808AZCF
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog Front End (AFE)
Description Fully Integrated, 8-Channel Ultrasound Analog Front End with Passive CW Mixer, 0.75 nV/rtHz, 14/12-Bit, 65 MSPS, 158 mW/CH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tray
Resolution 12, 14
Number of Channels 8
Power (Watts) 158mW
Operating Supply Voltage 1.7 V ~ 1.9 V, 3.15 V ~ 3.6 V, 5V
Voltage - Supply, Digital 1.7 V ~ 1.9 V
Package 135-BGA
Manufacturer Package 135-NFBGA (15x9)
Win Source Part Number 1142899-AFE5808AZCF
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name AFE5808A
Introduction Date November 16, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian AFE5808AZCF CAD Model

Description

Product Overview: AFE5808AZCF

The AFE5808AZCF is a highly integrated, high-performance analog front-end developed by Texas Instruments, designed for a variety of medical imaging applications. This advanced product is particularly suitable for ultrasound systems, where precision and reliability are paramount. With its cutting-edge technology, the AFE5808AZCF offers exceptional image quality and system integration, which is critical in the medical field.

Key Features

  • Channel Count: The AFE5808AZCF contains 8 channels of voltage-controlled amplifier (VCA), low-noise amplifier (LNA), and an anti-aliasing filter (AAF), which work together to provide clear and accurate signal acquisition.
  • Low Noise Performance: The device boasts a low-noise figure, which is essential for high-resolution imaging, ensuring that the signals are as clean and interference-free as possible.
  • High Integration: Integrating multiple functionalities into a single chip reduces the system's complexity and footprint, enabling more compact and efficient designs.
  • Programmable Gain: The AFE5808AZCF offers a programmable gain for each channel, allowing customization for different imaging needs and ensuring optimal performance across various applications.
  • Power Efficiency: Designed with power efficiency in mind, this analog front-end helps in reducing the overall power consumption of the imaging system, which is critical for portable and battery-powered devices.

Applications

The versatility of the AFE5808AZCF makes it an ideal choice for a wide range of medical imaging applications, including:

  • Portable and cart-based ultrasound systems
  • Digital X-ray
  • Computed tomography (CT) scanners
  • Magnetic resonance imaging (MRI)

Technical Specifications

With an input-referred noise of 0.75 nV/√Hz at a gain of 21.3 dB, and a total power consumption of 95 mW/channel, the AFE5808AZCF is a highly efficient solution. It operates over a wide frequency range, making it adaptable to various imaging techniques and frequencies.

The AFE5808AZCF from Texas Instruments represents a leap forward in analog front-end technology for medical imaging, providing the performance and integration necessary for today's advanced ultrasound systems.
