Introducing the ADS4125EVM Evaluation Module

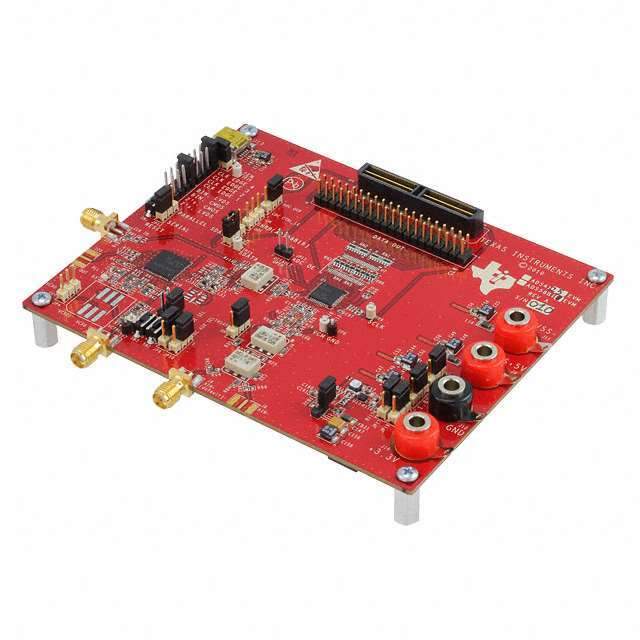

The ADS4125EVM is a robust evaluation module designed by Texas Instruments to facilitate the testing and performance evaluation of the ADS4125, a high-speed, low-power, 12-bit analog-to-digital converter (ADC). This state-of-the-art module serves as an essential tool for designers and engineers to explore the features and capabilities of the ADS4125 in a user-friendly environment.

At the heart of the ADS4125EVM is the ADS4125 ADC, which boasts a remarkable sampling rate of up to 65 MSPS (mega samples per second), making it an ideal choice for applications that require high-speed data acquisition, such as medical imaging, test and measurement equipment, and wireless communications. The ADC's exceptional performance is characterized by its excellent signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), ensuring precise and accurate signal conversion.

Key Features of the ADS4125EVM:

• Easy-to-use Interface: The ADS4125EVM provides a straightforward interface for quick setup and operation. It can be connected to a host system via an FMC (FPGA Mezzanine Card) connector, making it compatible with a variety of FPGA development boards for further processing and analysis.
• Flexible Power Options: The module supports a range of power supply options, including an onboard power supply circuit, which simplifies the process of providing the correct voltages to the ADC.
• Comprehensive Software Support: Texas Instruments offers a suite of software tools to accompany the ADS4125EVM. These tools enable users to control the ADC, capture data, and analyze performance without the need for extensive programming.
• Reference Clock: The module includes a provision for an external reference clock, which is critical for applications that demand high timing accuracy and synchronization.
• Demonstration Ready: The ADS4125EVM is designed to demonstrate the full capabilities of the ADS4125 right out of the box, with minimal additional components required.

In addition to these features, the ADS4125EVM offers a comprehensive layout that minimizes signal distortion and noise, ensuring the integrity of the signal chain. This careful design allows users to fully evaluate the ADS4125's performance in a controlled and accurate manner.

Whether you are developing cutting-edge technology or conducting high-precision research, the ADS4125EVM from Texas Instruments provides the necessary platform to push the boundaries of high-speed analog-to-digital conversion.
