Same model may have multiple batches, images only for reference.

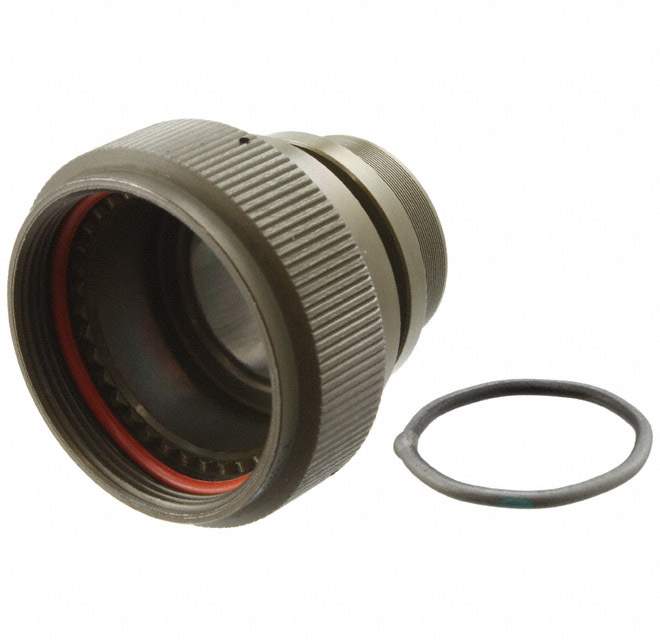

TXR40AB00-1610BI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB00-1610BI

Part No TXR40AB00-1610BI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 17E OLIVE  /  Olive Drab Connector Backshell, Heat Shrink Adapter M25x1 17, E
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 1.279" (32.49mm)
Shell Size - Insert 17, E
Thread Size M25x1
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 850845-000,TXR40AB00-1610BI-ND,A126027
Standard Package 1
Win Source Part Number 1230787-TXR40AB00-1610BI
Ultra Librarian 3D Model Ultra Librarian TXR40AB00-1610BI CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine TXR40AB00-1610BI backshell is a high-quality circular connector that is perfect for use with MIL-DTL-38999 Series III and IV products.

  • Application: It is designed to provide a secure and reliable connection between the cable and the connector.
  • Color: Olive Drab
  • Feature: Tinel Lock
  • Ideal For: Military and Aerospace Applications
  • Design: Shielded, Environment-Resistant
  • Pieces Included: One backshell, one braid, one O-ring, and one Tinel ring
  • Shell Size: 17
  • Insert: E
  • Material: Aluminum Alloy
  • Plating: Cadmium
  • Diameter: 1.279 inches (32.49 millimeters)
  • Thread Size: M25x1
  • Cable Exit: 180 degrees
  • ECCN: EAR99 compliant
