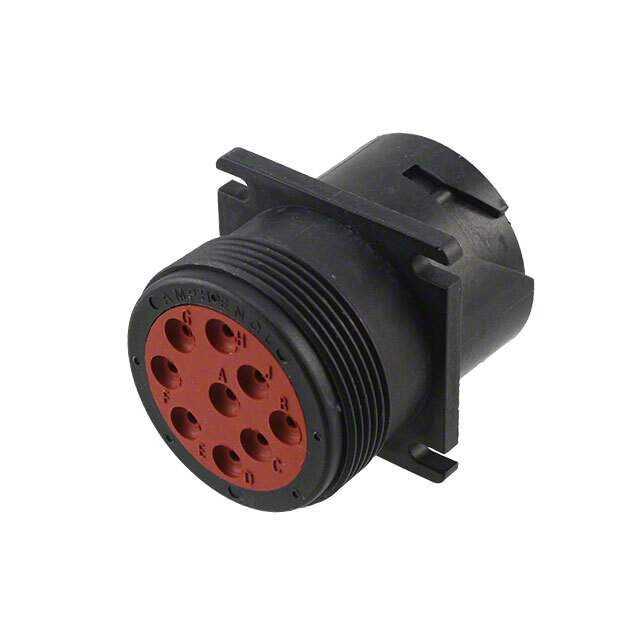

AHD10-9-1939P Real Image
Same model may have multiple batches, images only for reference.

AHD10-9-1939P

Part No AHD10-9-1939P
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 9POS PNL MNT / 9 Position Circular Connector Receptacle Housing Panel Mount
Datasheet
AHD10-9-1939P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Sine Systems Corp
Series AHD™
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number AHD10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 889-1142,AHD1091939P
Standard Package 100
Win Source Part Number 1182072-AHD10-9-1939P
Ultra Librarian 3D Model Ultra Librarian AHD10-9-1939P CAD Model

Description

The Amphenol Sine Systems Corp AHD™ series circular connector housing is a receptacle type connector with a bayonet lock fastening system.

  • Connector Type: Receptacle
  • Fastening System: Bayonet Lock
  • Mating: Male Pins
  • Contact Size: 16
  • Material: Thermoplastic
  • Ingress Protection: IP67
  • Shielding: Unshielded
  • Mounting: Flange
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Color: Black
  • Mounting Type: Panel
  • Packaging: Bulk
