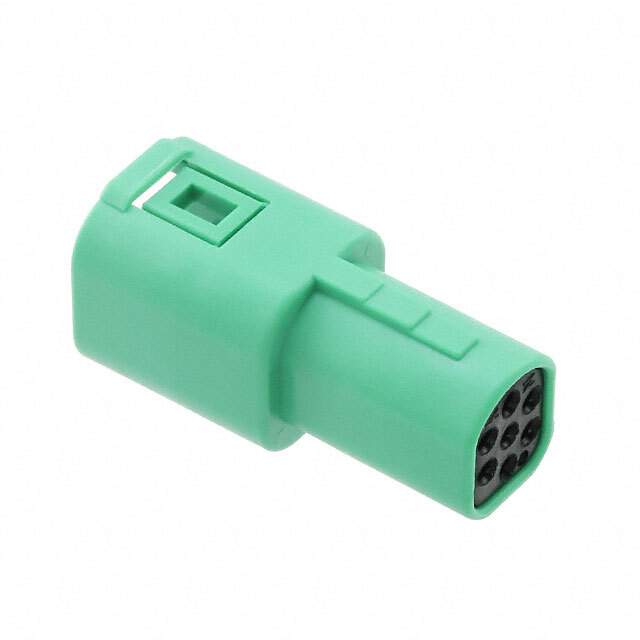

2822344-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Mini Multilock
Package Bulk
Connector Type Receptacle
Contact Type Tab
Number of Positions 7
Pitch 0.094" (2.40mm)
Number of Rows 3
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Green
Features Sealed
Note Contacts Not Included
Base Product Number 2822344
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names A126078,-2822344-1-LSI,-2822344-1-CSI,2822344-1-ND
Standard Package 100
Win Source Part Number 1193304-2822344-1
Ultra Librarian 3D Model Ultra Librarian 2822344-1 CAD Model

Description

The Mini Multilock 1193304-2822344-1 is a rectangular connector housing with 7 positions and a pitch of 0.094 inches.

  • Positions: 7
  • Pitch: 0.094 inches
  • Color: Green
  • Feature: Sealed
  • Type: Receptacle
  • Contact: Tab
  • Rows: 3
  • Row Spacing: 0.079 inches
  • Fastening Type: Locking Ramp
  • Mounting: Freely in-line
  • Standard Package: 100
  • HTSUS: 8536.69.8000
  • Manufacturer: TE Connectivity AMP Connectors
  • Base Product Number: 2822344
