Same model may have multiple batches, images only for reference.

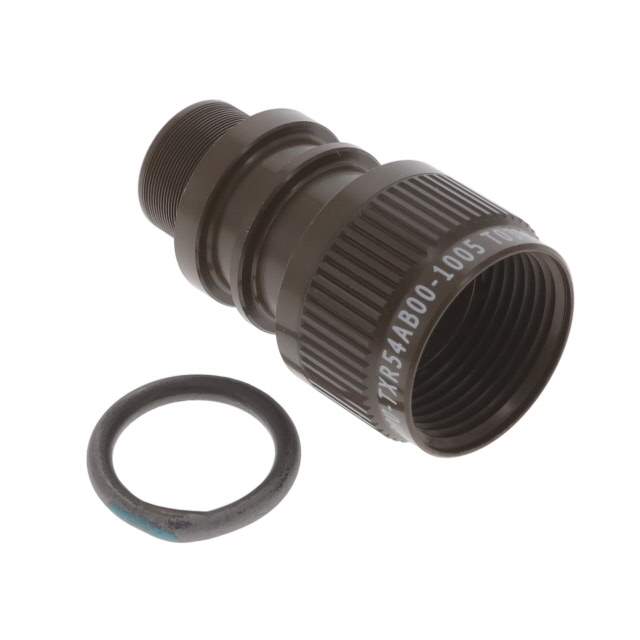

TXR54AB00-1005AI Real Image
Same model may have multiple batches, images only for reference.

TXR54AB00-1005AI

Part No TXR54AB00-1005AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 10-10SL  /  Olive Drab Connector Backshell, Heat Shrink Adapter 5/8-24 UNEF 10, 10S, 10SL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.732" (18.60mm)
Shell Size - Insert 10, 10S, 10SL
Thread Size 5/8-24 UNEF
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Includes 3 pcs - 1 Backshell, 1 Braid, 1 Tinel Ring
For Use With/Related Products MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III
Base Product Number TXR54AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names A141553,TXR54AB00-1005AI-ND,506793-000
Standard Package 1
Win Source Part Number 1177696-TXR54AB00-1005AI
Ultra Librarian 3D Model Ultra Librarian TXR54AB00-1005AI CAD Model

Description

The TXR54AB00-1005AI is a backshell and heat shrink adapter used in circular connectors.

  • Series: MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III
  • Package Type: Bulk
  • Shell Size: 10, 10S, 10SL
  • Diameter: 0.732" (18.60mm)
  • Thread Size: 5/8-24 UNEF
  • Cable Exit: 180°
  • RoHS: Non-compliant
  • Manufacturer: TE Connectivity Aerospace, Defense and Marine
