Same model may have multiple batches, images only for reference.

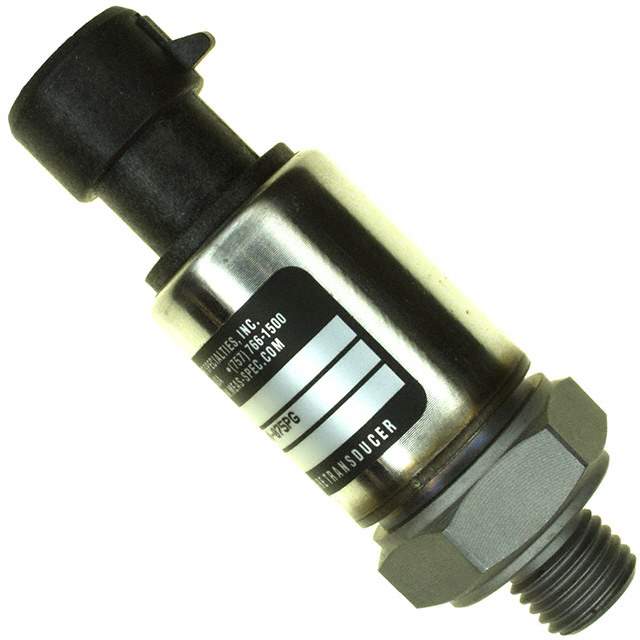

M5144-000004-075PG Real Image
Same model may have multiple batches, images only for reference.

M5144-000004-075PG

Part No M5144-000004-075PG
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description TRANSDUCER 1-5VDC 75PSI /
Datasheet
M5144-000004-075PG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr TE Connectivity Measurement Specialties
Series M5100
Package Box
Product Status Obsolete
Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure 75PSI (517.11kPa)
Output Type Analog Voltage
Output 1 V ~ 5 V
Accuracy ±1%
Voltage - Supply 8V ~ 30V
Port Size Male - 7/16" (11.11mm) O-Ring
Port Style Threaded
Features Temperature Compensated
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder
Base Product Number M5144
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 223-1056,2266-M5144-000004-075PG
Standard Package 1
Win Source Part Number 1080336-M5144-000004-075PG
Ultra Librarian 3D Model Ultra Librarian M5144-000004-075PG CAD Model

Description

The M5144-000004-075PG is an industrial pressure sensor/transducer that is part of the M5100 series.

  • Pressure Type: Vented gauge
  • Pressure: 75PSI (517.11kPa)
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Output Type: Analog voltage
  • Output: 1 V ~ 5 V
  • Accuracy: ±1%
  • Temperature Compensated: Yes
  • Voltage Supply: 8V ~ 30V
  • Manufacturer: TE Connectivity Measurement Specialties
  • Alternate Names: 223-1056 and 2266-M5144-000004-075PG
  • Product Status: Obsolete
