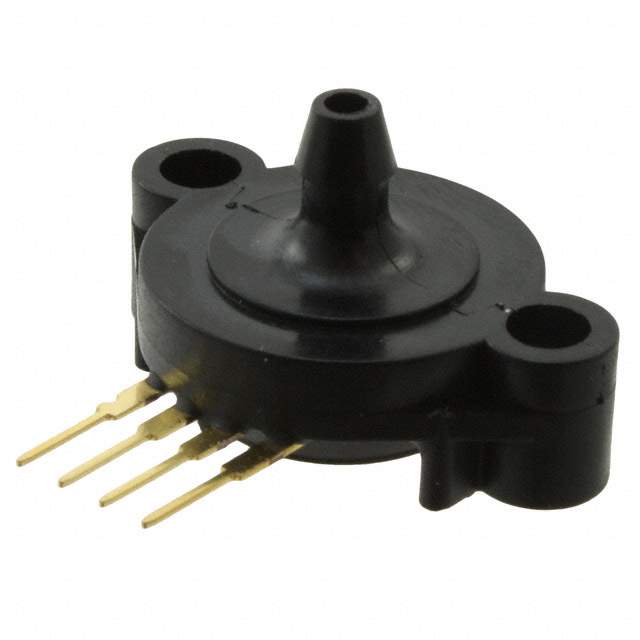

MPX2102ASX

Part No MPX2102ASX
Manufacturer NXP / Nexperia
Catalog Pressure Sensors, Transducers
Description SENSOR 14.5PSIA 0.19" .04V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001027-MPX2102ASX
Manufacturer NXP USA Inc.
Category Sensors, Transducers -Pressure Sensors, Transducers
Series MPX2102
Package Tray
Package / Case 4-SIP Module
Mounting Type Through Hole
Operating Temperature -40°C ~ 125°C
Base Product Number MPX2102
Features Temperature Compensated
Port Style Barbed
Ultra Librarian 3D Model Ultra Librarian MPX2102ASX CAD Model

Description

NXP MPX2102ASX Pressure Sensor

The MPX2102ASX is a state-of-the-art pressure sensor from NXP Semiconductors designed for a wide range of applications requiring a micro-machined silicon pressure sensor. This device offers a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a member of NXP's MPX series of silicon piezoresistive pressure sensors that are renowned for their reliability and consistent performance.

Key Features:

  • Operating Pressure Range: The MPX2102ASX operates within a pressure range of 0 to 100 kPa, making it suitable for various measurement needs.
  • Temperature Compensated: This sensor includes temperature compensation from -40°C to +125°C, ensuring stable outputs across a broad range of environmental conditions.
  • High Sensitivity: With a sensitivity of 40 mV/kPa, the MPX2102ASX can detect minute changes in pressure, providing precise readings for critical applications.
  • Differential Pressure Measurement: It is designed to measure the difference between two pressure sources, which is essential for applications like flow rate monitoring and level detection.
  • Robust Design: Encapsulated in a rugged, small outline package (SOP), the sensor is protected against environmental factors, making it ideal for robust applications.
  • Integrated Silicon Pressure Sensor: On-chip signal conditioned temperature compensated and calibrated, the MPX2102ASX delivers a high-level output model for ease of use.

Applications:

The MPX2102ASX is versatile and can be employed in various industries and systems, including:

  • Industrial controls
  • Medical devices
  • Pneumatic control systems
  • Automotive systems
  • Environmental monitoring
  • Consumer electronics

In summary, the NXP MPX2102ASX pressure sensor is an excellent choice for system designers and engineers who require a reliable, accurate, and easy-to-integrate component for their pressure-sensing needs. Its robust design and temperature compensation make it suitable for challenging environments and ensure its performance is maintained without the need for external calibration in most applications.
