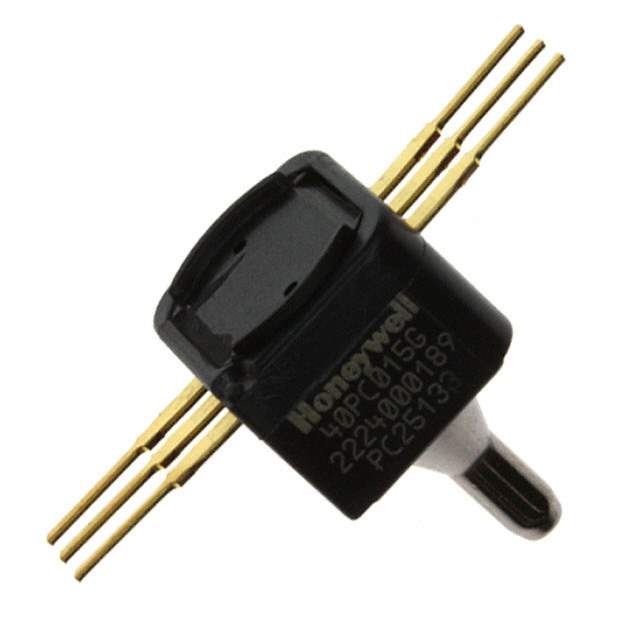

40PC015G1A Real Image
Same model may have multiple batches, images only for reference.

40PC015G1A

Part No 40PC015G1A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIG 0.18" 4.5V / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.18" (4.57mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 40PC
Package Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±4%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.18" (4.57mm) Tube
Port Style Barbless
Features Amplified Output
Termination Style PC Pin
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -45°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number 40PC015
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1349200-40PC015G1A
Ultra Librarian 3D Model Ultra Librarian 40PC015G1A CAD Model

Description

The Honeywell 40PC series pressure transducer is an amplified output type sensor used in various board mount applications.

  • Sensor Type: Amplified Output
  • Pressure Type: Vented Gauge
  • Maximum Operating Pressure: 15PSI (103.42kPa)
  • Output: Analog Voltage (0.5 V to 4.5 V)
  • Accuracy: ±4%
  • Voltage Supply: 4.75V to 5.25V
  • Mounting: Through Hole
  • Package: 6-DIP Module
  • Packaging: Tube
  • Port Size: Male-0.18" (4.57mm) Tube
  • Port Style: Barbless
  • Operating Temperature: -45°C to 125°C
