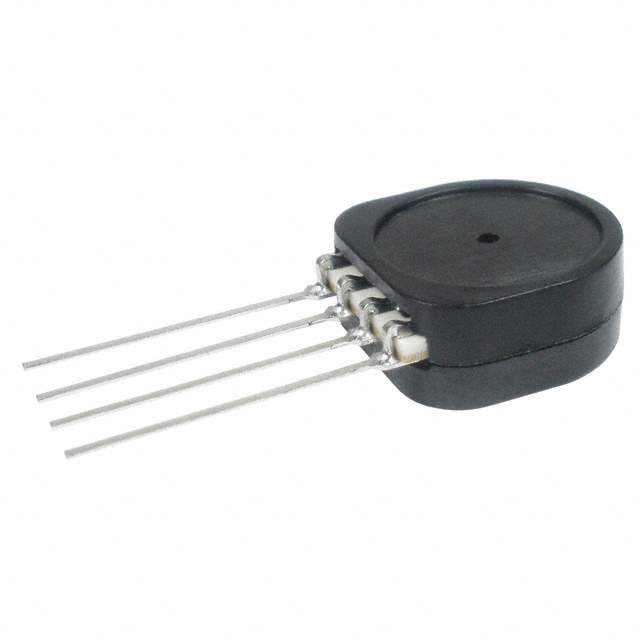

NSCSSNN150PDUNV Real Image
Same model may have multiple batches, images only for reference.

NSCSSNN150PDUNV

Part No NSCSSNN150PDUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 150PSID .2585V 4SIP / Pressure Sensor ±150PSI (±1034.21kPa) Differential 0 mV ~ 258.5 mV (5V) 4-SIP Module
Datasheet
NSCSSNN150PDUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® NSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±150PSI (±1034.21kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 258.5 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.5V ~ 12V
Port Style No Port
Termination Style PC Pin
Maximum Pressure ±250PSI (±1723.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number NSCSSNN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1352273-NSCSSNN150PDUNV
Ultra Librarian 3D Model Ultra Librarian NSCSSNN150PDUNV CAD Model

Description

The TruStability® NSC pressure sensor is a Wheatstone Bridge output type sensor with an output of 0 mV ~ 258.5 mV (5V).

  • Output Type: Wheatstone Bridge
  • Output: 0 mV ~ 258.5 mV (5V)
  • Pressure Type: Differential
  • Operating Pressure: ±150PSI (±1034.21kPa)
  • Max Pressure: ±250PSI (±1723.69kPa)
  • Mounting Type: Board Mount
  • Voltage - Supply: 1.5V ~ 12V
  • Package / Case: 4-SIP Module
  • Standard Package: 50
  • Termination Style: PC Pin
  • Port Style: No Port
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C ~ 85°C
