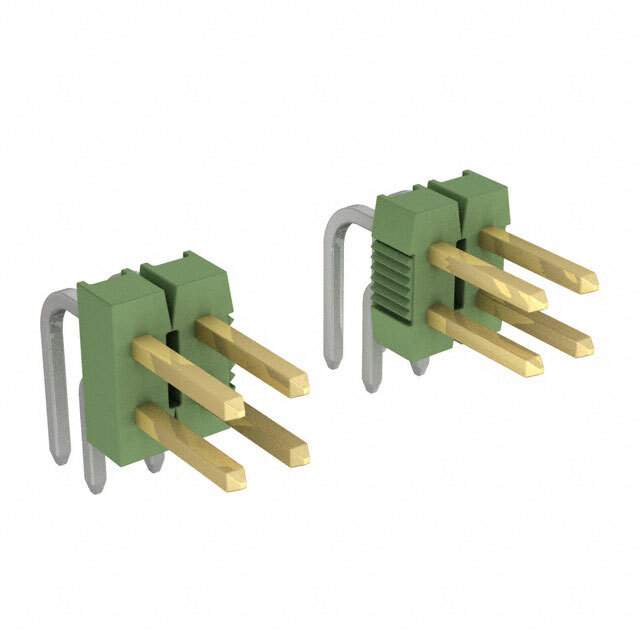

826634-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.219" (5.56mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90μin (0.099μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Green
Current Rating (Amps) 5A
Contact Finish Thickness - Post 118.1μin (3.00μm)
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1133923-826634-5
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 826634-5 CAD Model

Description

This electronic component is a TE Connectivity AMP Connectors header with the Win Source Part Number 1133923-826634-5.

  • Packaging: Bulk
  • Number of Positions: 10
  • Mounting Style: Through Hole, Right Angle
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Number of Positions Loaded: All
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Brass
  • Operating Temperature: -65°C to 105°C
  • Category: Connectors and Interconnects
  • Shrouded: Unshrouded
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 3.90μin (0.099μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 118.1μin (3.00μm)
  • Insulation Color: Green
  • Manufacturer Homepage: www.macom.com
  • Popularity: Popular
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 300
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 5A
