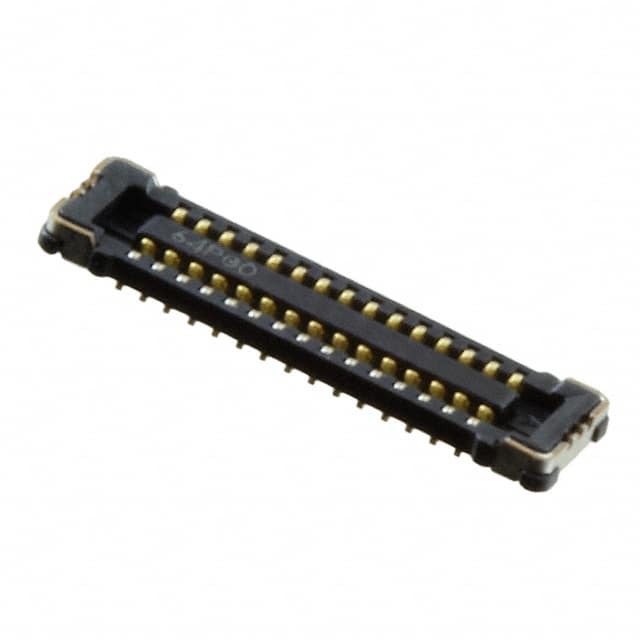

WP21-S030VA1-R8000
Same model may have multiple batches, images only for reference.

WP21-S030VA1-R8000

Part No WP21-S030VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 30POS SMD GOLD / 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
WP21-S030VA1-R8000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP21
Package Tape & Reel
Product Status Not For New Designs
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.023" (0.59mm)
Base Product Number WP21-S03
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 903276-WP21-S030VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP21-S030VA1-R8000 CAD Model

Description

The WP21-S030VA1-R8000 is a rectangular connector array designed for board-to-board interconnects.

  • Positions: 30
  • Pitch: 0.014" (0.35mm)
  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Solder Retention: Yes
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Height Above Board: 0.023" (0.59mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Standard Package Quantity: 8,000 pcs
  • Status: Not for New Designs
  • Compliance: California Prop 65
