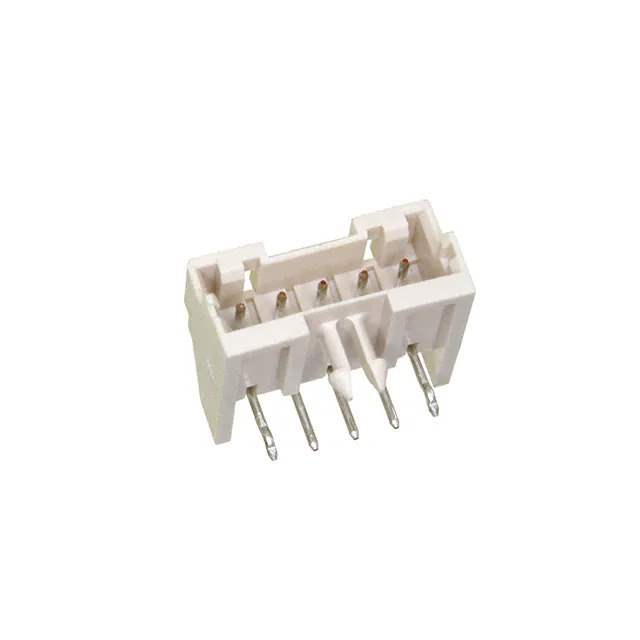

S05B-XASK-1(LF)(SN)

Name: S05B-XASK-1(LF)(SN)
Brand: JST Sales America Inc.
SKU: 932575
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S05B-XASK-1(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 2.5MM / Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.299" (7.60mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Lock
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S05B-XAS
Standard Package	200 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	932575-S05B-XASK-1(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S05B-XASK-1(LF)(SN) CAD Model

Alternative Products

Description

The XA series headers with male pins are designed for reliable and secure connections in electronic applications and manufactured by JST Sales America Inc.

Number of Positions: 5
Contact Type: Male Pin
Termination Options: Press-Fit and Soldering
Fastening Type: Locking Ramp
Series: S05B-XAS
Lifecycle Status: Active
ECCN: EAR99
HTSUS Code: 8536.69.4040
Current Rating: 3A
Voltage Rating: 250V
Temperature Range: -25°C to 85°C
