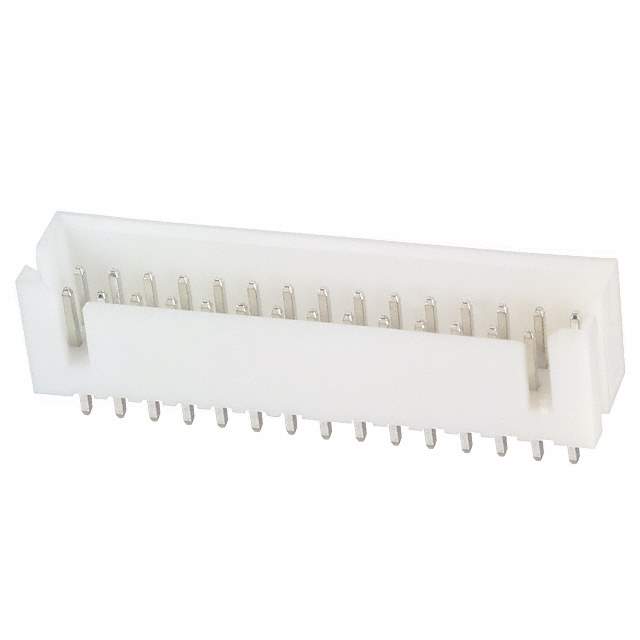

DF1BZ-30DP-2.5DSA

Name: DF1BZ-30DP-2.5DSA
Brand: Hirose Electric Co Ltd
SKU: 1349635
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF1BZ-30DP-2.5DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 30POS 2.5MM / Connector Header Through Hole 30 position 0.098" (2.50mm)
Datasheet	DF1BZ-30DP-2.5DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF1B
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.417" (10.60mm)
Insulation Height	0.374" (9.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Keying Slot
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Voltage Rating	250V
Mated Stacking Heights	14mm
Base Product Number	DF1B
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349635-DF1BZ-30DP-2.5DSA
Ultra Librarian 3D Model	Ultra Librarian DF1BZ-30DP-2.5DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF1BZ-30DP-2.5DSA is a rectangular connector designed for board to cable/wire connections.

Connector Type: Header
Contact Gender: Male Pin
Number of Contacts: 30
Mounting Type: Through Hole
Termination: Solder
Contact Material: Brass
Contact Finish Mating: Tin
Contact Finish Post: Tin
Voltage Rating: 250V
Row Spacing: 0.098" (2.50mm)
Style: Shrouded-4 Wall
Insulation Height: 0.374" (9.50mm)
Contact Length: 0.417" (10.60mm)
Operating Temperature: -35°C to 85°C
Packaging: Tray
Standard Package: 100
Base Product Number: DF1B
