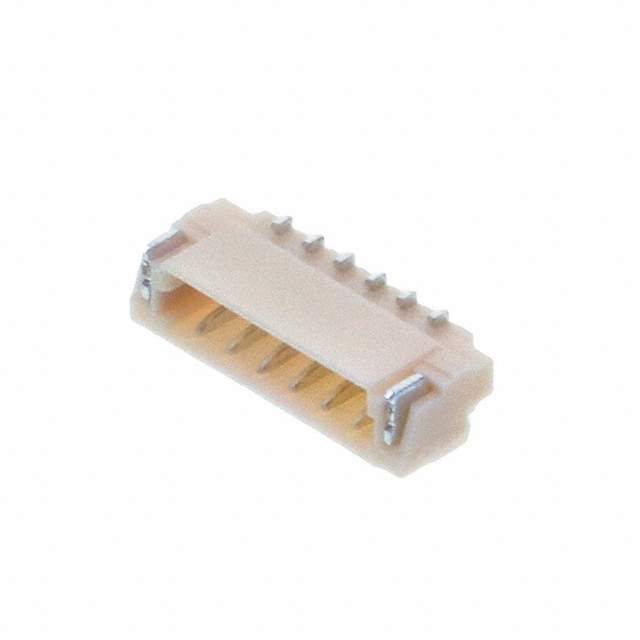

The SM06B-SURS-TF(LF) is a 6-pin, 1.0mm pitch SMT (Surface Mount Technology) header connector from JST (Japan Solderless Terminal) Sales America Inc., part of the SUR series. It is designed for board-to-wire connections in compact electronic devices, offering a reliable and space-saving solution for connecting wire harnesses to PCBs (Printed Circuit Boards).

Applications

• Consumer Electronics: Used for internal connections in devices like digital cameras, smartphones, and tablets.
• Industrial Equipment: Employed in control panels, sensors, and other industrial equipment requiring compact connections.
• Automotive Electronics: Integrated into automotive electronics systems for connecting various components.
• Medical Devices: Used in medical devices where space and reliability are critical.
• Robotics: Integrated into robotics systems for connecting sensors, actuators, and control systems.

Features

• 6 Pins: Features 6 pins for signal and power connections.
• 1.0mm Pitch: Compact 1.0mm pitch for high-density mounting.
• SMT Mounting: Designed for surface mount soldering onto PCBs.
• Surface Mount Header: Provides a header connection for wire harnesses.
• Durable Construction: Made from high-quality materials for reliable performance.

Benefits

• Compact Design: Saves valuable board space due to its small size and fine pitch.
• Reliable Connection: Provides a secure and reliable connection between wires and PCBs.
• Efficient Assembly: Facilitates efficient assembly through SMT mounting.
• Versatile Application: Suitable for a wide range of applications requiring compact and reliable connections.
• Cost-Effective: Offers a cost-effective solution for board-to-wire connections.

Additional Details

The SM06B-SURS-TF(LF) header is designed to mate with JST’s SUR series crimp style housings and contacts. The 'TF' in the part number usually designates the packaging (e.g., tape and reel for automated assembly). The '(LF)' suffix indicates that the connector is lead-free, compliant with RoHS standards. Proper soldering techniques are required for SMT components, and a reflow soldering process is generally used for attaching these connectors to the PCB. The connector body material is typically a high-temperature plastic suitable for reflow soldering temperatures. Mating force and unmating force are important considerations when designing with this connector.
