Same model may have multiple batches, images only for reference.

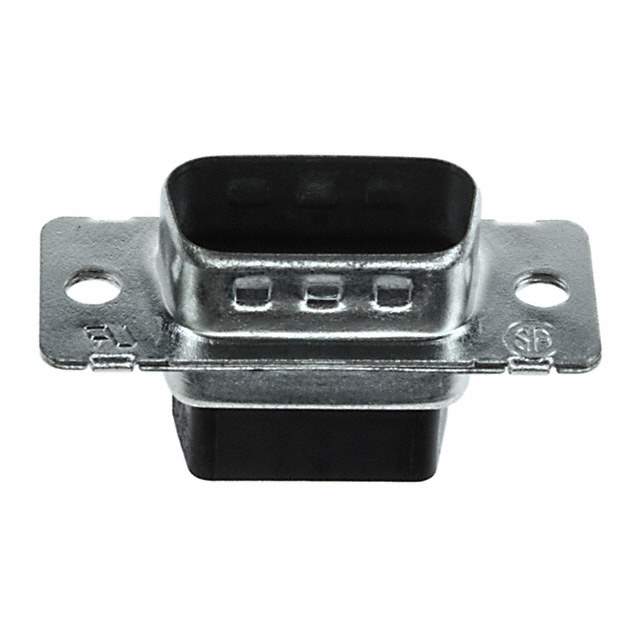

748364-1 Real Image
Same model may have multiple batches, images only for reference.

748364-1

Part No 748364-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HD HOUSING PLUG 15POS / Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub, High Density
Connector Type Plug for Male Contacts
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 748364
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 7483641,A2076,-748364-1-SI,-748364-1-CSI
Standard Package 800
Win Source Part Number 1333253-748364-1
Ultra Librarian 3D Model Ultra Librarian 748364-1 CAD Model

Description

TE Connectivity AMP Connectors D-Sub, D-Shaped Connector Housings are high-density connectors that are ideal for use in a wide range of applications.

  • Connector: 1333253-748364-1
  • Packaging: Bulk
  • Positions: 15
  • Contacts: Designed to be used with male contacts
  • Features: Grounding indents
  • Contact Type: Designed for signal contacts
  • Material: Steel
  • Finish: Tin-plated
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting: Free hanging (in-line)
  • Shell Size: 1 (DE, E) High Density
  • Manufacturer: TE Connectivity AMP Connectors
