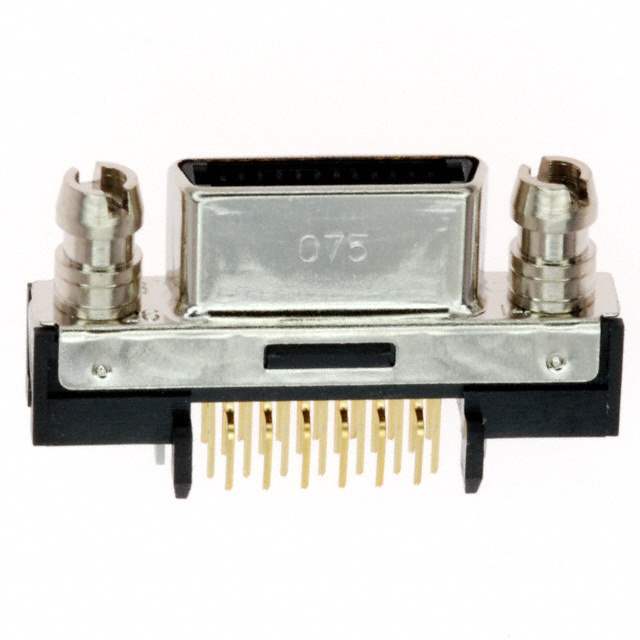

12226-1150-00FR 3M
Same model may have multiple batches, images only for reference.

12226-1150-00FR

Part No 12226-1150-00FR
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS PCB SOLDER
Datasheet
12226-1150-00FR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310368-12226-1150-00FR
Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Tray
Part Status Active
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Termination Solder
Features Board Lock, Shielded
Ultra Librarian 3D Model Ultra Librarian 12226-1150-00FR CAD Model

Description

26 Position Receptacle Connector Panel Mount, Through Hole Solder
