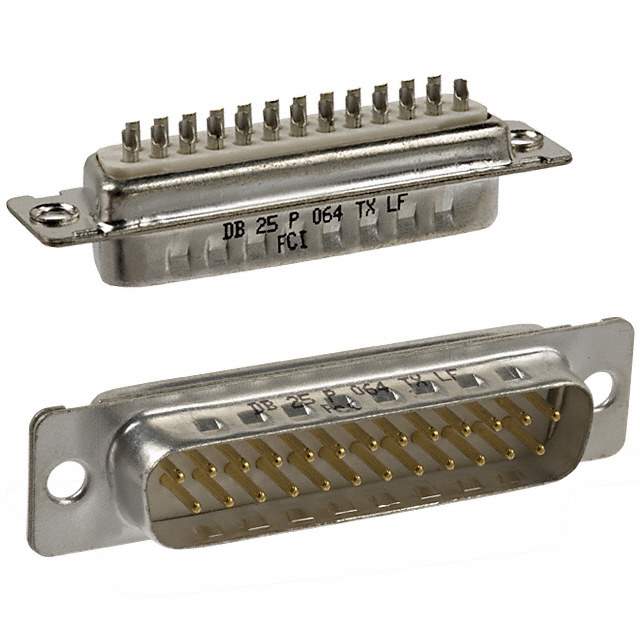

DB25P064TXLF Real Image
Same model may have multiple batches, images only for reference.

DB25P064TXLF

Part No DB25P064TXLF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 25POS SLDR CUP / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series D
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Grounding Indents
Voltage Rating 300V
Color Natural
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DB25P064
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 609-1518
Standard Package 100
Win Source Part Number 990622-DB25P064TXLF
Ultra Librarian 3D Model Ultra Librarian DB25P064TXLF CAD Model

Description

The Amphenol 990622-DB25P064TXLF is a plug male pin connector that has a contact finish of gold with a flash finish thickness.

  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Connector Type: D-Sub
  • Color: Natural
  • Grounding Indents: Yes
  • Positions: 25
  • Contact Type: Signal
  • Voltage Rating: 300V
  • Temperature Range: -55°C ~ 125°C
  • REACH Affected: Yes
  • Mounting Type: Free Hanging (In-Line)
  • Flange Feature: Housing/Shell (Unthreaded)
