Same model may have multiple batches, images only for reference.

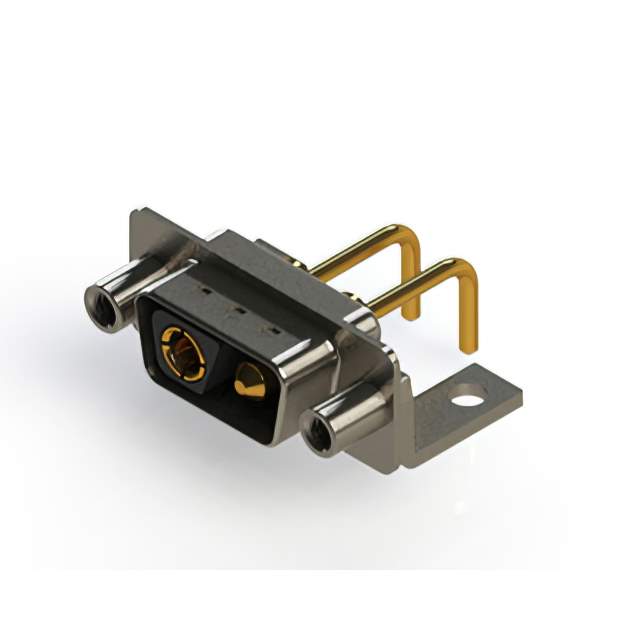

629-2WK2650-1T6 Real Image
Same model may have multiple batches, images only for reference.

629-2WK2650-1T6

Part No 629-2WK2650-1T6
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description 629 SERIES RIGHT ANGLE COMBO' D-  /  2 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
Datasheet
629-2WK2650-1T6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 629-C
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Female Sockets and Male Pins
Number of Positions 2 (Power)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2
Contact Type Power
Flange Feature Mating Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Backset Spacing 0.520" (13.20mm)
Features Board Lock, Grounding Indents
Voltage Rating 125V
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 629-2WK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-629-2WK2650-1T6
Standard Package 2,000
Win Source Part Number 1003400-629-2WK2650-1T6
Ultra Librarian 3D Model Ultra Librarian 629-2WK2650-1T6 CAD Model

Description

The 629-2WK2650-1T6 D-sub connector is a reliable component for electronic devices.

  • Current Rating: 10A
  • Manufacturer: EDAC Inc.
  • Flange Feature: Mating Side (4-40)
