Products specifications

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity
Series CHAMP .031
Package Box
Product Status Obsolete
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 36
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Termination IDC
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 5787131
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 907505-5787131-2
Ultra Librarian 3D Model Ultra Librarian 5787131-2 CAD Model

Description

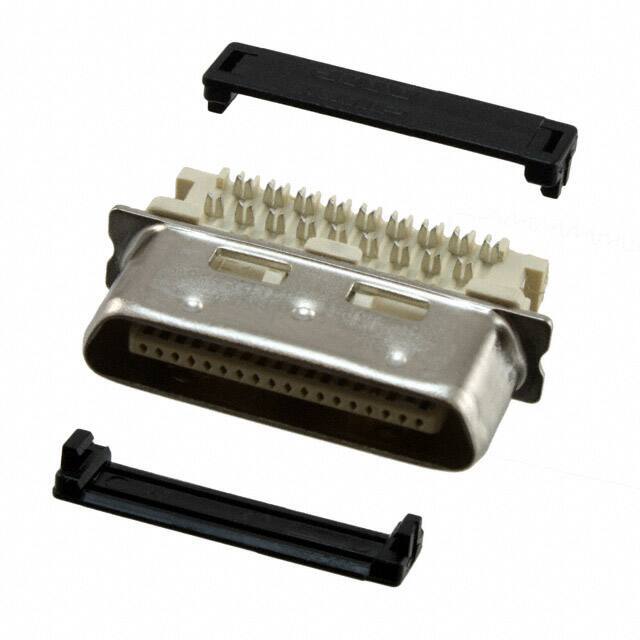

The CHAMP .031 Centronics Connector is a versatile and reliable connector designed for use in various applications.

  • Series: CHAMP .031
  • Type: Centronics Connector
  • Connector Type: Plug
  • Positions: 36
  • Rows: Two
  • Termination: IDC
  • Contact Finish: Gold
  • Package: Box
  • Pieces: 23
  • Status: Active
  • Manufacturer: TE Connectivity
