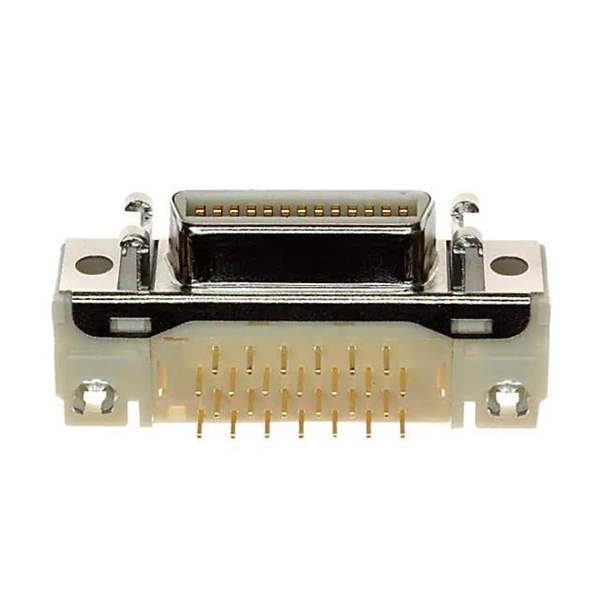

10226-55G3PC Real Image
Same model may have multiple batches, images only for reference.

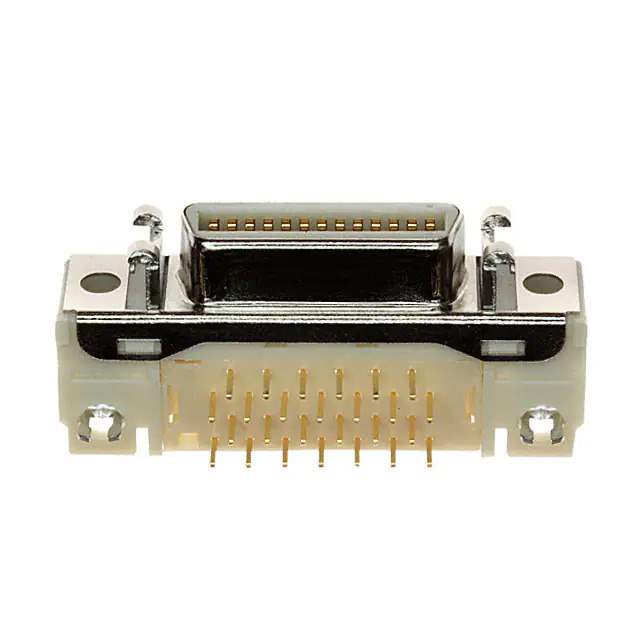

10226-55G3PC

Part No 10226-55G3PC
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS R/A SOLDER / 26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr 3M
Series 102, Mini D Ribbon (MDR)
Package Bulk
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10226
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847800-10226-55G3PC
Ultra Librarian 3D Model Ultra Librarian 10226-55G3PC CAD Model

Description

The 847800-10226-55G3PC is a high-quality centronics connector from the 102 series, also known as mini D ribbon (MDR) connectors and is manufactured by 3M.

  • Number of Positions: 26
  • Features: Board Lock, Shielding
  • Connector Type: Receptacle
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Standard Package: 100 pieces
  • Mounting Options: Panel Mount, Through Hole Mount, Right Angle Mount
  • Operating Temperature: -40°C to 105°C
