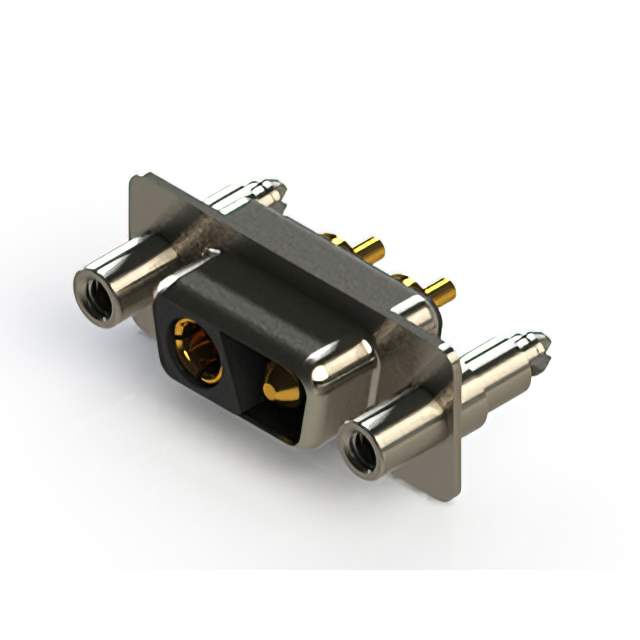

628-2WK2624-1T6 Real Image
Same model may have multiple batches, images only for reference.

628-2WK2624-1T6

Part No 628-2WK2624-1T6
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description 628 SERIES VERTICAL COMBO' D-SUB / 2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Datasheet
628-2WK2624-1T6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 628-C
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets and Male Pins
Number of Positions 2 (Power)
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2
Contact Type Signal and Power
Flange Feature Mating Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Features Board Lock, Shielded
Voltage Rating 125V
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 628-2WK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-628-2WK2624-1T6
Standard Package 200
Win Source Part Number 965549-628-2WK2624-1T6
Ultra Librarian 3D Model Ultra Librarian 628-2WK2624-1T6 CAD Model

Description

The 965549-628-2WK2624-1T6 is a D-Sub connector designed for use in a variety of applications.

  • Shielded: Yes
  • Power Positions: Two
  • Gender: Female Sockets and Male Pins
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage: 125V
  • Current Rating: 10A
