Same model may have multiple batches, images only for reference.

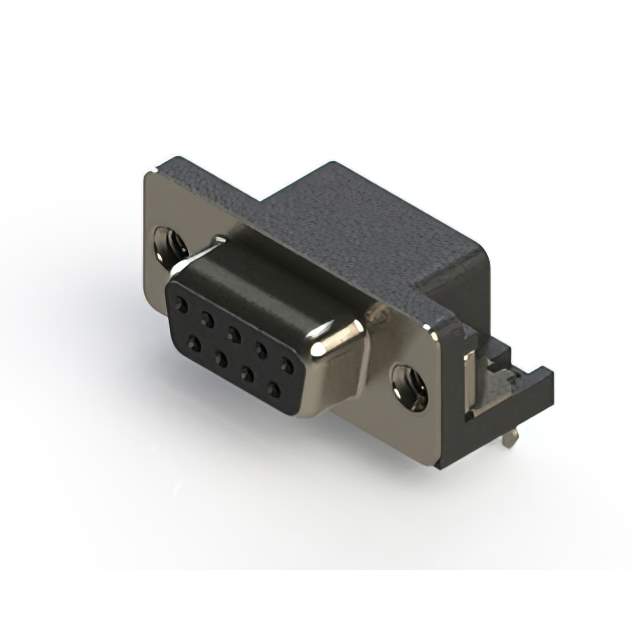

622-009-268-032 Real Image
Same model may have multiple batches, images only for reference.

622-009-268-032

Part No 622-009-268-032
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
622-009-268-032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 622
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Filter, Mounting Brackets, Shielded
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 622-009
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 25
Win Source Part Number 971108-622-009-268-032
Ultra Librarian 3D Model Ultra Librarian 622-009-268-032 CAD Model

Description

The 971108-622-009-268-032 is a D-Sub Connector designed by EDAC Inc.

  • Features: Board Lock, Filter, Mounting Brackets, Shielded
  • Flammability Rating: UL94 V-0
