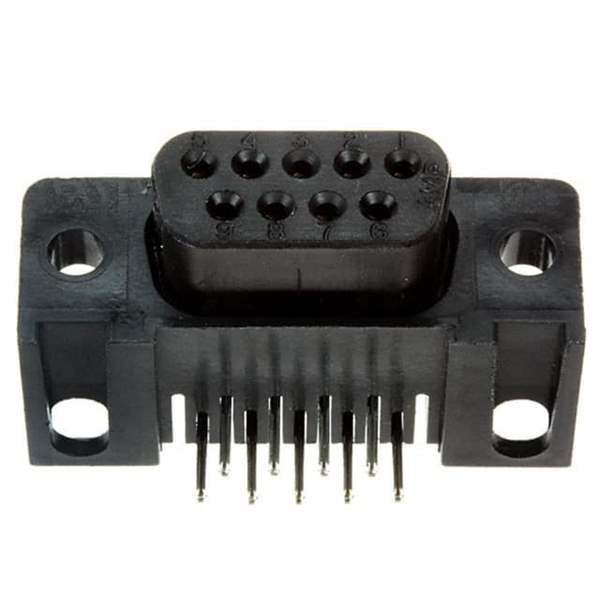

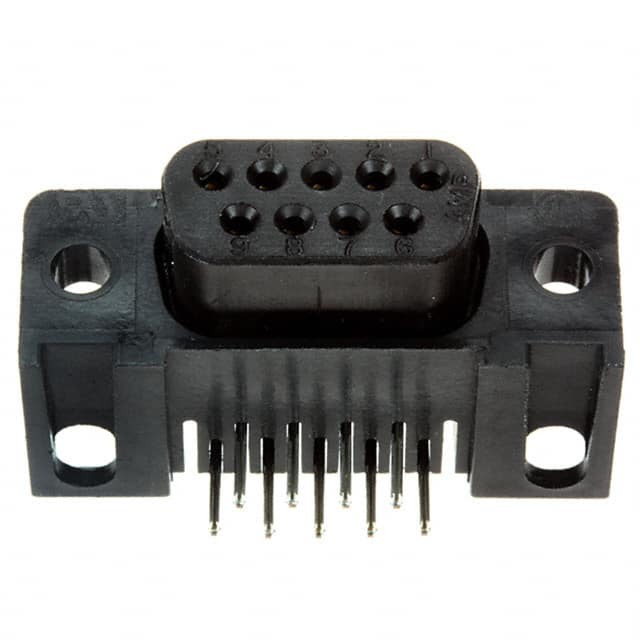

745131-1
Same model may have multiple batches, images only for reference.

745131-1

Part No 745131-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Voltage Rating 125V
Color Black
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 745131
Standard Package 130 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857630-745131-1
Ultra Librarian 3D Model Ultra Librarian 745131-1 CAD Model

Description

The TE Connectivity electronic component with the part number 857630-745131-1 is an active product.

  • Category: Connectors and Interconnects
  • Product Type: D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
  • Series: AMPLIMITE HD-20
  • Positions: 9
  • Color: Black
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Finish: Gold with a flash thickness
  • Package: Tray
  • Standard Package Quantity: 130 pieces
  • Connector Style: D-Sub
  • Voltage Rating: 125V
  • Current Rating: 6A
  • REACH Status: REACH affected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 745131
