Same model may have multiple batches, images only for reference.

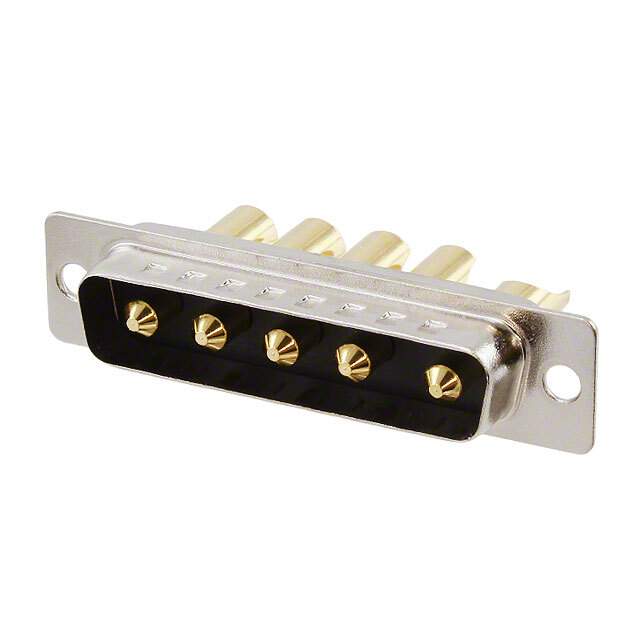

680M5W5103L401 Real Image
Same model may have multiple batches, images only for reference.

680M5W5103L401

Part No 680M5W5103L401
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 5POS PNL MNT / 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Datasheet
680M5W5103L401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Power-D 680M
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 5 (Power)
Number of Rows 1
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B) - 5W5
Contact Type Power
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 40A
Features Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 155°C
Base Product Number 680M5W5
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351108-680M5W5103L401
Ultra Librarian 3D Model Ultra Librarian 680M5W5103L401 CAD Model

Description

The NorComp Inc. Power-D 680M series D-sub connector assembly is a highly reliable and durable connector that can be used in various applications.

  • Positions: 5
  • Color: Black
  • Connector Type: Plug
  • Gender: Male
  • Grounding: Grounding Indent
  • Contact Type: Power
  • Contact Form: Machined
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material: Steel
  • Shell Plating: Nickel
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Current Rating: 40A
  • Temperature Range: -55°C to 155°C
  • Ingress Protection: IP50
  • Shielding: Shielded
  • Mounting Type: Panel Mount
  • Backshell Material: N/A
  • Backshell Plating: N/A
