Same model may have multiple batches, images only for reference.

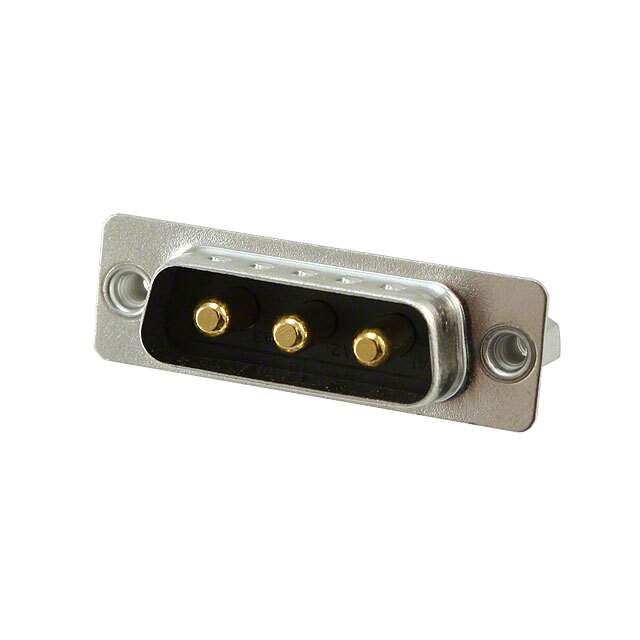

LCC17-A3W3PE-AN0 Real Image
Same model may have multiple batches, images only for reference.

LCC17-A3W3PE-AN0

Part No LCC17-A3W3PE-AN0
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 3POS VERT SLDR / 3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series CoolPower®, LCC17
Package Bulk
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 3 (Power)
Number of Rows 1
Mounting Type Through Hole
Shell Size, Connector Layout 2 (DA, A) - 3W3
Contact Type Power
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 55A
Features Board Lock
Color Black
Dielectric Material Thermoplastic, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Base Product Number LCC17A3
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348129-LCC17-A3W3PE-AN0
Ultra Librarian 3D Model Ultra Librarian LCC17-A3W3PE-AN0 CAD Model

Description

The CoolPower® LCC17-A3W3PE-AN0 is a D-Sub, combo plug male pin connector assembly that features 3 power positions.

  • Color: Black
  • Connector Type: Plug, Male Pins
  • Contact Finish: Gold
  • Finish Thickness: 30.0 microns (0.76 micrometers)
  • Contact Material: Copper Alloy
  • Shell Material: Steel
  • Shell Finish: Tin-Plated
  • Temperature Range: -40°C to 105°C
  • Current Rating: 55A
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
