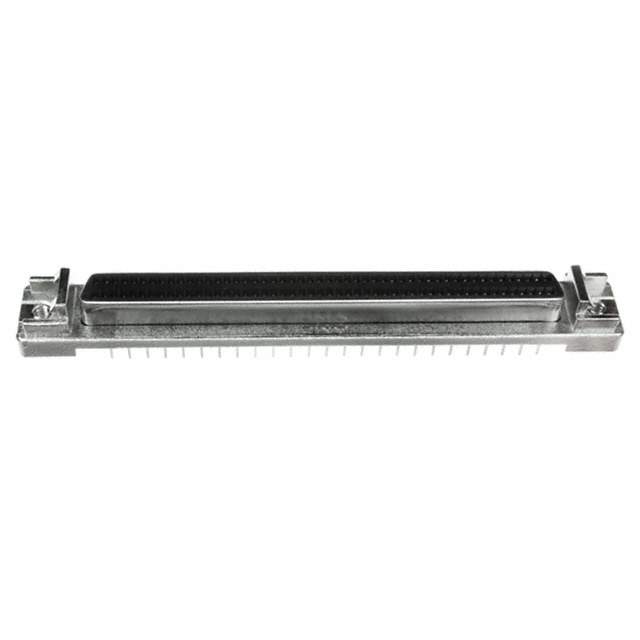

5749069-9 Real Image
Same model may have multiple batches, images only for reference.

5749069-9

Part No 5749069-9
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN DTYPE RCPT 100POS VERT SLDR
Datasheet
5749069-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 100
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Style Through Hole
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Termination Solder
Features Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 30V
Current Rating 1A
Color Black
Housing Material Thermoplastic
Contact Material Phosphor Bronze
Win Source Part Number 764789-5749069-9
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5749069-9 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE .050 III from TE Connectivity AMP Connectors is a through-hole mounting style connector.

  • Positions: 100
  • Rows: 2
  • Pitch: 0.050" (1.27mm)
  • Color: Black
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Housing Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Shielded: Yes
  • Shell Material: Steel
  • Shell Finish: Nickel-plated
  • Operating Temperature: -55°C ~ 105°C
  • Packaging: Tube
  • Supply and Demand Status: Limited
