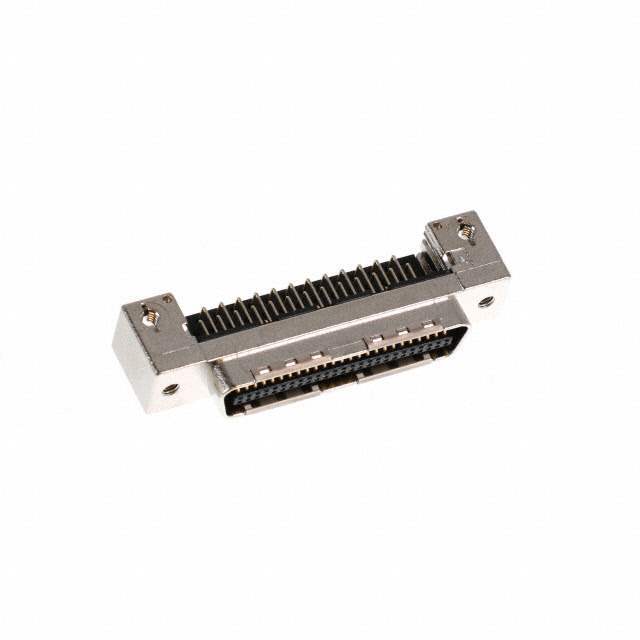

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Box
Part Status Active
Connector Type Plug
Number of Positions 50
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 10150-5212PC CAD Model

Description

• Wiper-on-wiper contact for reliable repetitive plugging

• Rugged die cast metal case construction

• Screw or ground lock PCB retention

• Normal and reverse “D” interface options for board to board flexibility

• IEEE 1284C Interface as a 36 contact connector

• Contacts: 20, 26, 36 and 50

• See Regulatory Information Appendix (RIA) for chemical compliance information
