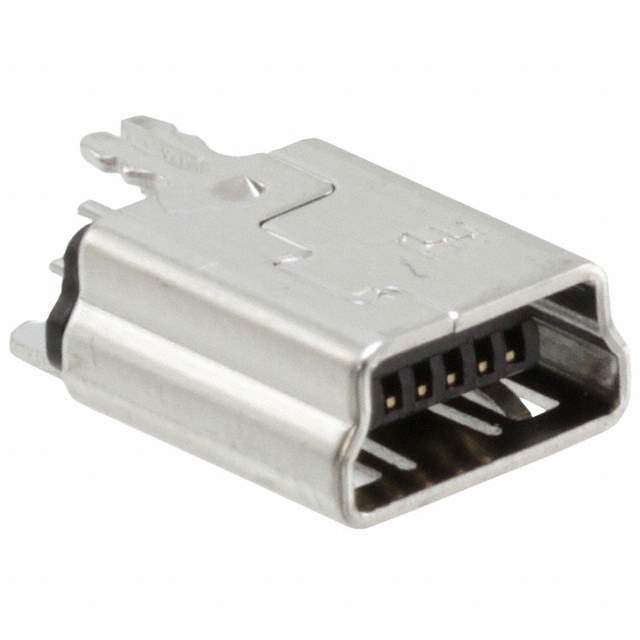

1734753-1

Part No 1734753-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description MINI USB CONN RCPT
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Lock
Temperature Range - Operating -20°C to 60°C
Number of Ports 1
Current Rating 1A
Voltage Rating 30VAC
Mating Cycles 5000
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 197325-1734753-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1734753-1 CAD Model

Description

1734753-1

The 1734753-1 is a versatile and reliable electronic component designed for a range of applications. Its robust construction and excellent performance make it a preferred choice for engineers and hobbyists alike.

  • Applications:
    • Telecommunication systems
    • Consumer electronics
    • Industrial machinery
    • Automotive systems
  • Features and Benefits:
    • Durable design ensures longevity and reliability
    • Easy to integrate with existing circuits
    • Low power consumption
    • Wide operating temperature range
  • Additional Details:
    • Dimensions: Standard size
    • Compliance: Meets industry safety standards
    • Manufacturer: Industry-leading provider
