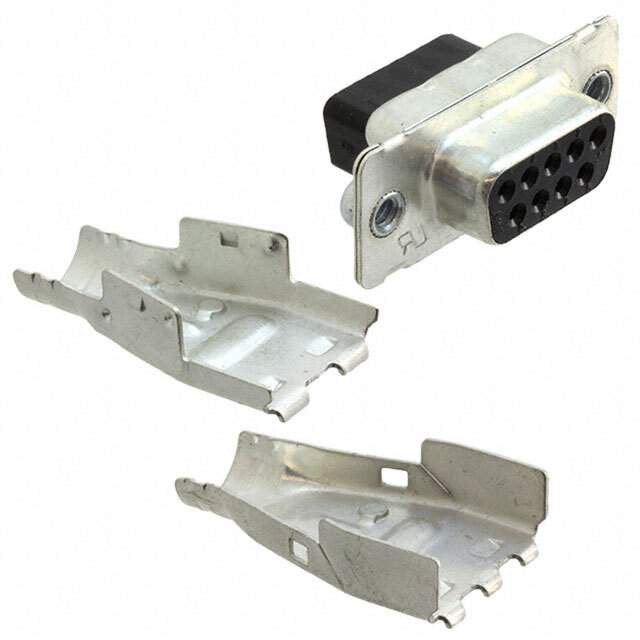

5748536-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Features Backshell, Shielded
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 5748536
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 57485361,5748536-1-ND,A114026,-5748536-1-SI
Standard Package 1
Win Source Part Number 1333178-5748536-1
Ultra Librarian 3D Model Ultra Librarian 5748536-1 CAD Model

Description

The 1333178-5748536-1 is a D-sub connector housing from TE Connectivity AMP Connectors.

  • Connector Type: Receptacle
  • Contact Gender: Female
  • Positions: 9
  • Shielded: Yes
  • Feature: Backshell
  • Connector Style: D-sub
  • Flange Feature: Cable Side (4-40)
  • ROHS3: Compliant
  • Packaging: Bulk
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
